Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 12
- 14
- 16
Article Number | 02NR-D6S-P |
Number Of Contacts | 2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 03NR-D6S-P |
Number Of Contacts | 3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 04NR-D6S-P |
Number Of Contacts | 4 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 05NR-D6S-P |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 06NR-D6S-P |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 07NR-D6S-P |
Number Of Contacts | 7 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 08NR-D6S-P |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 09NR-D6S-P |
Number Of Contacts | 9 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 10NR-D6S-P |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 12NR-D6S-P |
Number Of Contacts | 12 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 14NR-D6S-P |
Number Of Contacts | 14 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | 16NR-D6S-P |
Number Of Contacts | 16 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Eigenschappen verschillen tussen varianten en subvarianten

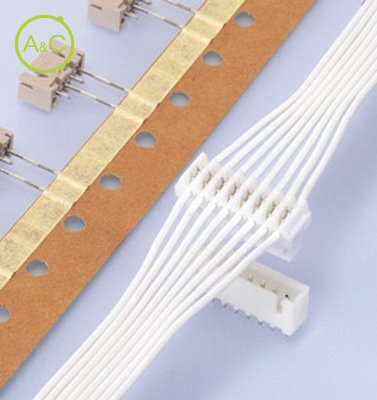

This 2.5mm (.098") pitch insulation displacement connector is another version of the NR connector for printed circuit boards.
The NRD connector allows daisy chaining and is very useful in simplifying connection systems in electronic equipment.
Daisy chain connection

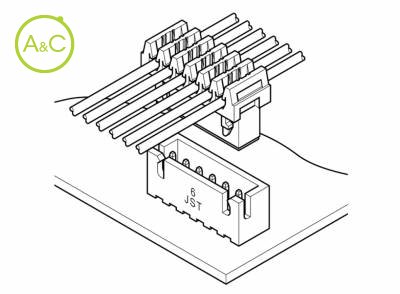

The connection shown in the figure is commonly called "daisy chain connections" or "through connections". With these simple connections, many signals can be bussed to many different printed circuit boards. The NRD connector is constructed to allow such daisy chain connections.
Reliable insulation displacement construction
The contact is identical to that of the NR connector which has an established reputation for superb reliability.
Strain relief
Two strain relief sections are provided on the housing to decouple vibration, bending forces and other external stresses from the insulation displacement section.
Interchangeability
The shrouded header is interchangeable with the XH connectors (crimp style), the NR connectors (IDC style), and the JQ connectors (board-to-board style).
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R85272
RoHS Compliant
