Female Connector Gold-plated

FHJ CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	04FHJ-SM1-GAN-TB
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	05FHJ-SM1-GAN-TB
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	06FHJ-SM1-GAN-TB
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	07FHJ-SM1-GAN-TB
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	08FHJ-SM1-GAN-TB
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	09FHJ-SM1-GAN-TB
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	10FHJ-SM1-GAN-TB
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	11FHJ-SM1-GAN-TB
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	12FHJ-SM1-GAN-TB
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	13FHJ-SM1-GAN-TB
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	14FHJ-SM1-GAN-TB
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	16FHJ-SM1-GAN-TB
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	18FHJ-SM1-GAN-TB
Number Of Contacts	18
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	20FHJ-SM1-GAN-TB
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	21FHJ-SM1-GAN-TB
Number Of Contacts	21
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	24FHJ-SM1-GAN-TB
Number Of Contacts	24
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Eigenschappen verschillen tussen varianten en subvarianten

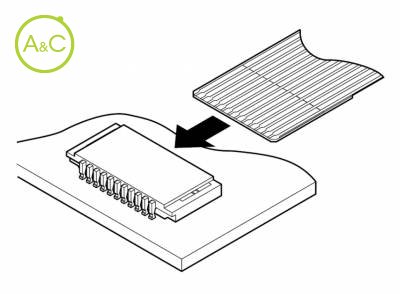

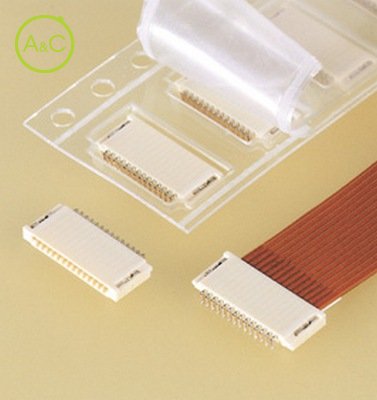

With only 1.2mm (0.47") height, the FHJ connector may be used with a standard 0.3mm (.012") thick FPC. Space-saving design. Two types of solder tails are available i.e. J-lead type tails are folded inward and G-lead type tails are folded outward for the inspection (IPK). Ultra compact mounting space Maintaining the performance of present 0.5mm (.020") pitch non-ZIF connector, more space-saving design has been achieved. J lead type, of which lead with solder is bent inward, and G lead type, that enables soldering inspection (IPK) after mounting, are available. Heat resistant design suitable for surface mounting The housing is made of heat resistant plastic to allow reflow soldering. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
