Connectoren
Terug naar productoverzicht
Number Of Poles
- 3
- 5
- 7
- 12

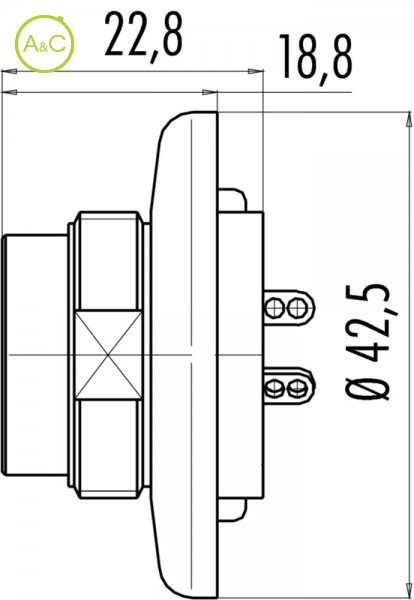

Article Number | 09 0036 00 03 |
Connector Diameter | 28 mm |
Number Of Contacts | 3 contacts |
Connector Locking System | Screw (M25) |
Termination | Solder |
Wire Section | 1.5 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 1 |
Overvoltage Categorie | II |
Material Group | III |
Rated Current (40°) | 10 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Ag (Silver) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | GD-Al (anodized) |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
