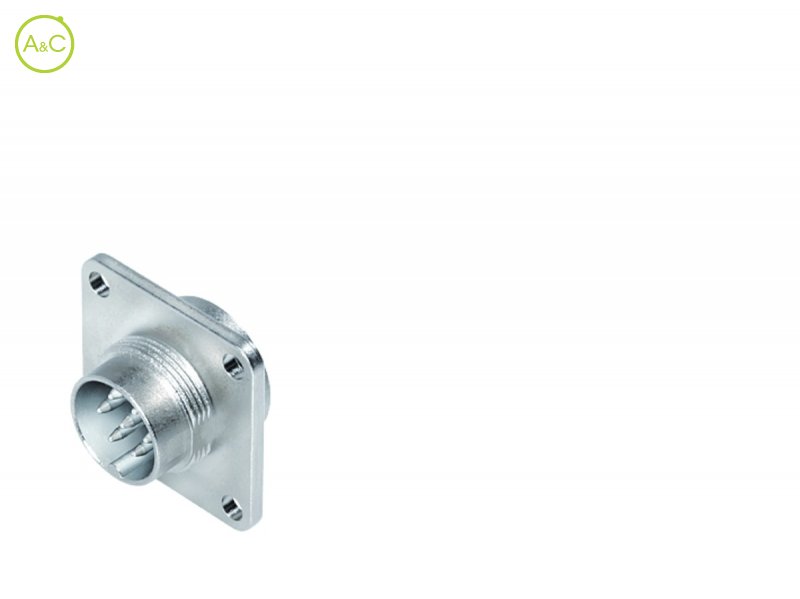

Male panel mount connector

Rectangular flange
Crimp

09-0111-370-04

09-0111-370-04

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

4
5
6 DIN
7
8 DIN

Article Number	09 0111 320 04
Connector Diameter	17 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Product sheet	Download product sheet

Article Number	09 0115 320 05
Connector Diameter	17 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Product sheet	Download product sheet

Article Number	09 0123 320 06
Connector Diameter	17 mm
Number Of Contacts	6 DIN contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Product sheet	Download product sheet

Article Number	09 0127 320 07
Connector Diameter	17 mm
Number Of Contacts	7 contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Product sheet	Download product sheet

Article Number	09 0173 320 08
Connector Diameter	17 mm
Number Of Contacts	8 DIN contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
