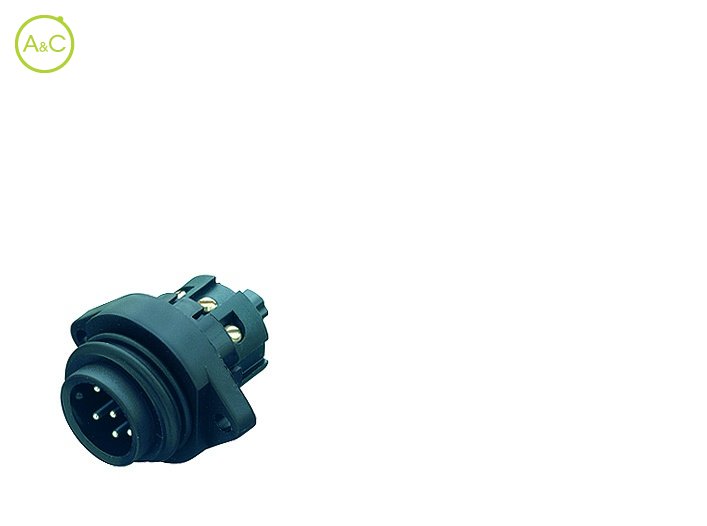

Connectoren
Terug naar productoverzicht
Number Of Poles
- 6+PE
Article Number | 09 0219 00 07 |
Connector Diameter | 21.5 mm |
Number Of Contacts | 6+PE contacts |
Connector Locking System | Screw (RD24) |
Termination | Screw |
Wire Section | 0,34 - 1,5 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +100 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 4000 V |
Pollution Degree | 3 |
Overvoltage Categorie | III |
Material Group | III |
Rated Current (40°) | 10 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Ag (Silver) |
Material Of Insert | PBT |
Material Of Housing | PA (UL 94 V-0) |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
