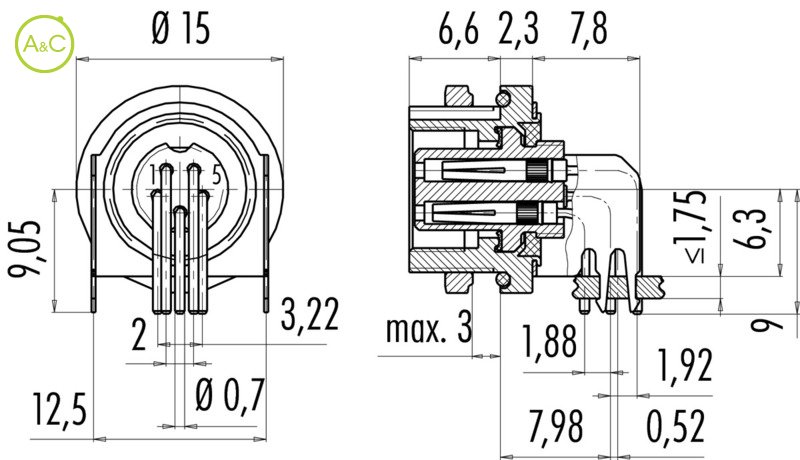

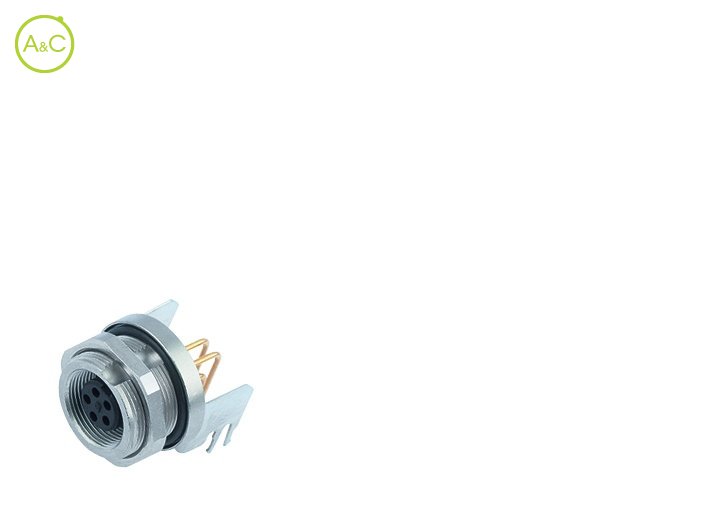

Female panel mount connector

  • Dip solder, front fastened with shielding sheet, angled

Number Of Poles

  • 2
  • 5
Article Number 09 0404 55 02
Number Of Contacts 2 contacts
Connector Locking System Screw (M9)
Termination Dip solder
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 1
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing CuZn (Brass nickel plated)
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
