Number Of Poles
- 3+PE

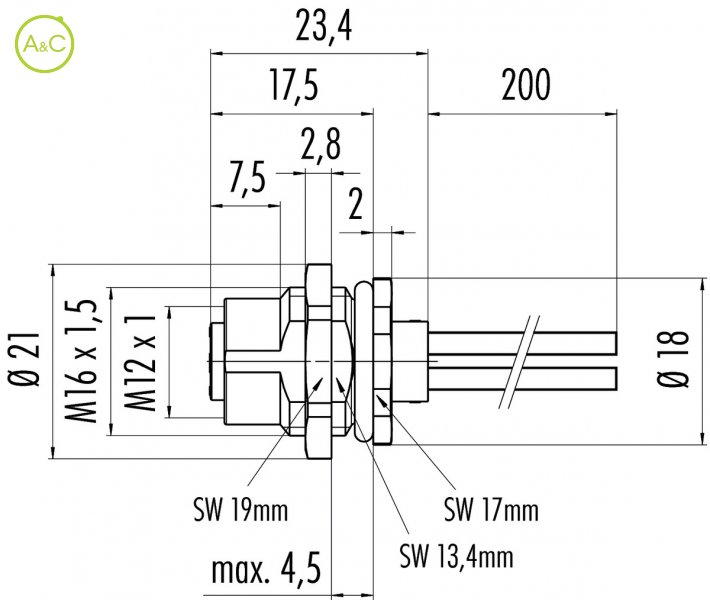

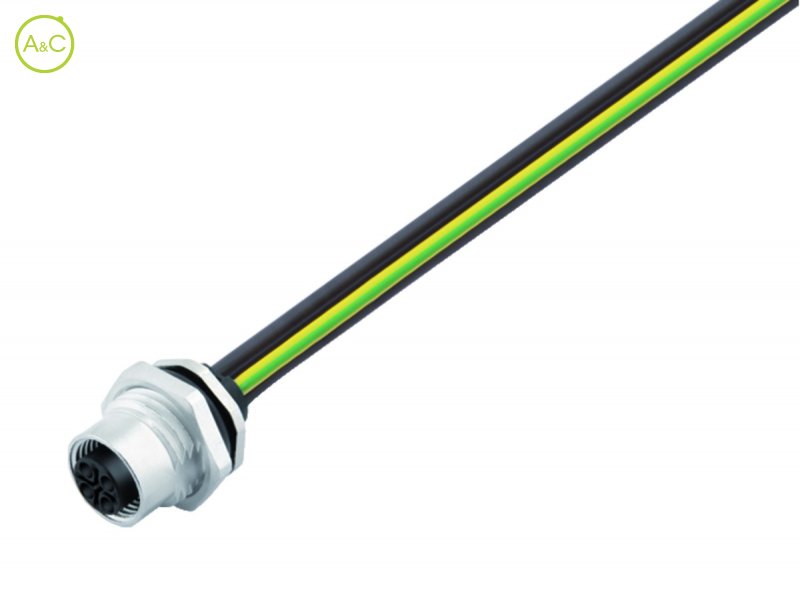

Article Number | 09 0692 121 04 |
Connector Diameter | 21 mm |
Number Of Contacts | 3+PE contacts |
Connector Locking System | Screw(M12-S) |
Termination | Single wires |
Wire Section | 1.5 mm² |
Protection Degree | IP67 |
Mating Cycles | >100 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 630 |
Rated Impuls Voltage | 6000 V |
Pollution Degree | 3 |
Overvoltage Categorie | III |
Material Group | III |
Rated Current (40°) | 12 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Au (Gold) |
Material Of Insert | PA |
Material Of Housing | Brass nickel plated / zinc diecasting nickel plated |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
