Male panel mount connector

  • With single wires, 0,25mm²
  • UL-approval

Number Of Poles

  • 4
  • 5
  • 8
  • 12
Article Number 76 0131 0011 00004 0200 09 3431 700 04 76 2131 0111 00004 0200 76 2231 0111 00004 0200
Old Article Number 09 3431 00 04 09 3431 282 04 09 3431 828 04
Connector Diameter 18 mm 18 mm 18 mm 18 mm
Number Of Contacts 4 contacts 4 contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A) Screw (M12-A) Screw (M12-A)
Termination Single wires Single wires Single wires Single wires
Wire Section 0.25 mm² 0,25 mm² 0.25 mm² 0.25 mm²
Protection Degree IP68 IP68 IP68 IP68
Mating Cycles >100 times >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C +85 °C
Lower Temperature -40 °C -40 °C -40 °C -40 °C
Rated Voltage 250 250 250 250
Rated Impuls Voltage 2500 V 2500 V 2500 V 2500 V
Pollution Degree 3 3 3 3
Overvoltage Categorie II II II II
Material Group II II II II
Rated Current (40°) 4 A 4 A 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PA PA PA PA

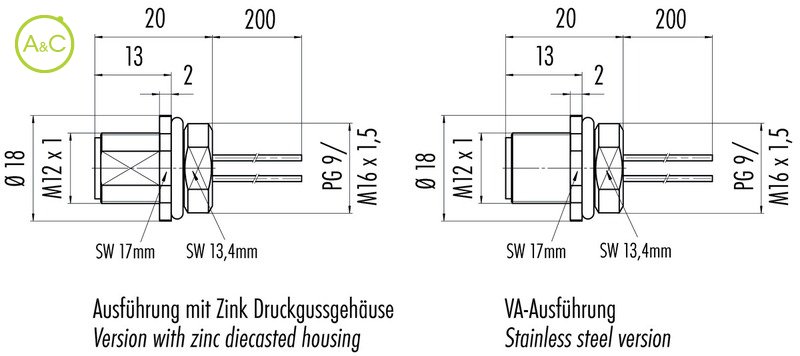

Material Of Housing brass/zinc diecasting nickel plated brass/zinc diecasting nickel plated Stainless steel Stainless steel
Product sheet Download product sheet Download product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
