Binder
Number Of Poles
- 4
- 5
- 8
- 12

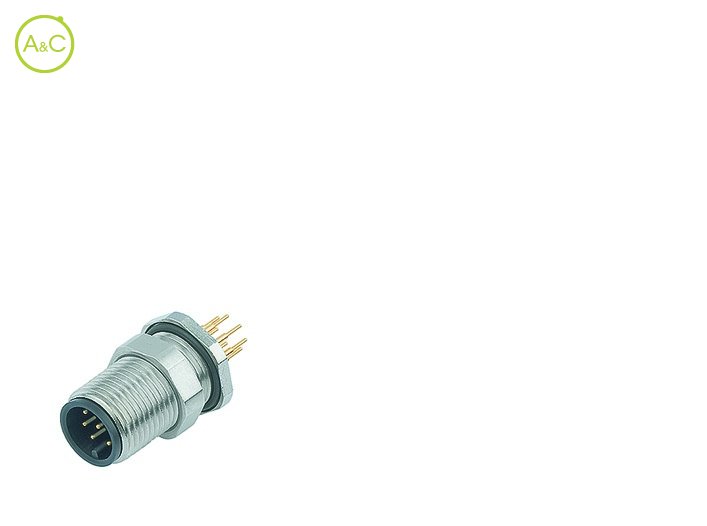

| Article Number | 86 1031 1100 00004 |
| Old Article Number | 09 3431 550 04 |

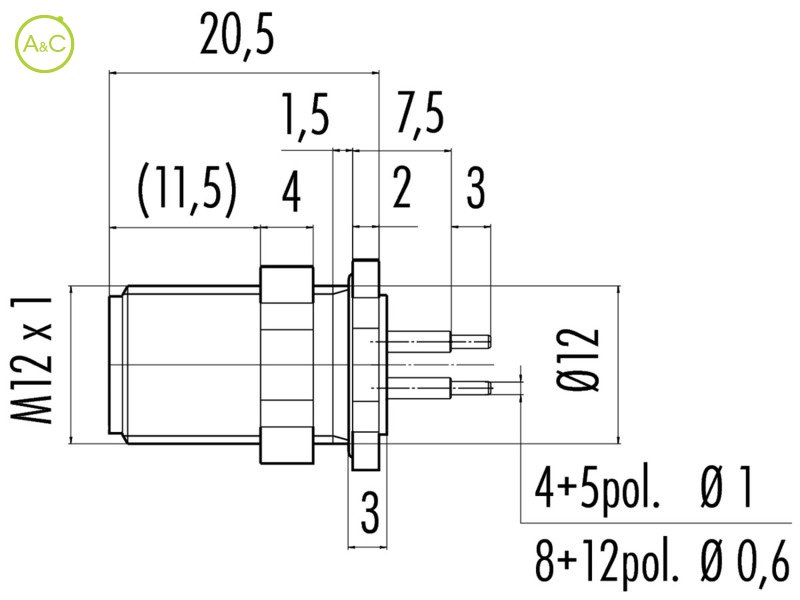

| Connector Diameter | 12 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw (M12-A) |
| Termination | Dip solder |
| Protection Degree | IP68 |
| Mating Cycles | >50 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 2500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | Brass nickel plated |
| Fixing Thread | M12 x 1 |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
