Connectoren
Terug naar productoverzicht
Number Of Poles
- 4
- 5

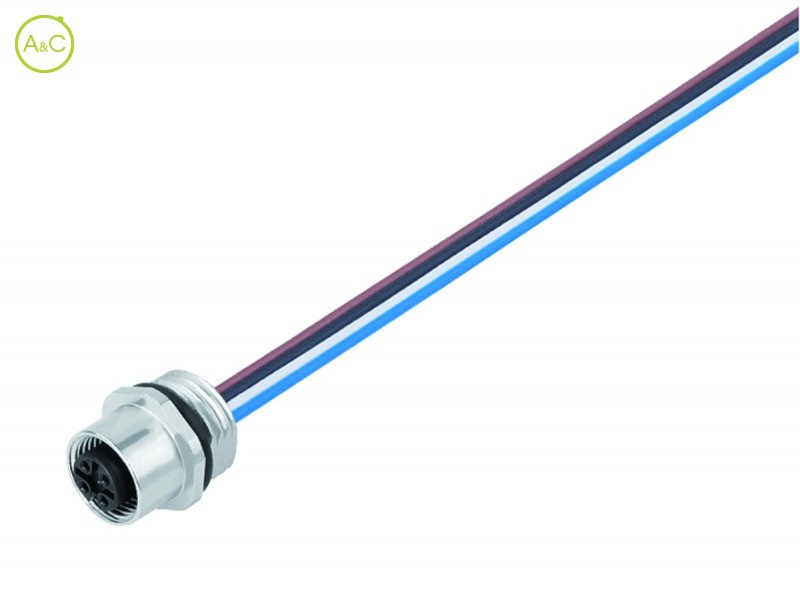

Article Number | 09 3432 433 04 |

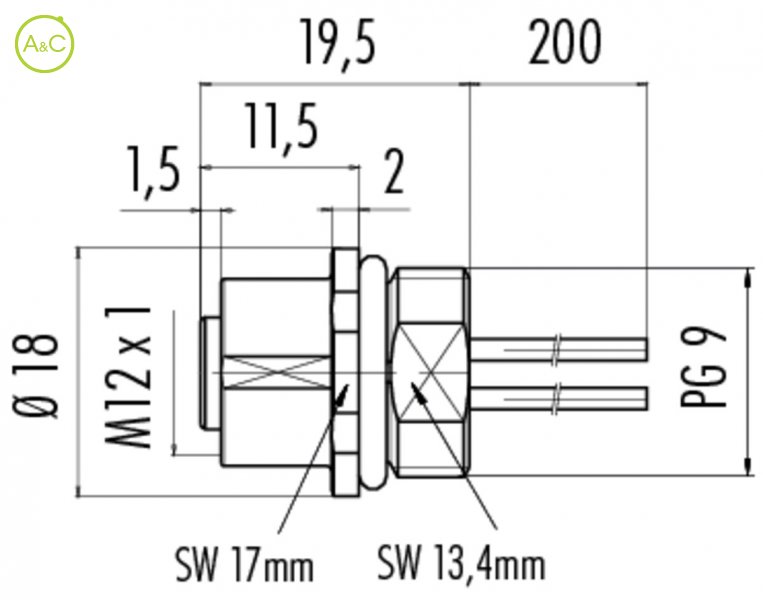

Connector Diameter | 18 mm |
Number Of Contacts | 8 contacts |
Connector Locking System | Screw (M12-A) |
Termination | Single wires |
Wire Section | 0.9 mm² |
Protection Degree | IP67 |
Mating Cycles | >50 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 8 (pin 1-4) / 2 (pin 5) A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze), CuZn (Brass) |
Plating | Au (Gold) |
Material Of Insert | PA |
Material Of Housing | Zinc diecasting nickel plated |
Fixing Thread | M16 x 1,5 |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
