Connectoren
Terug naar productoverzicht
Number Of Poles
- 8

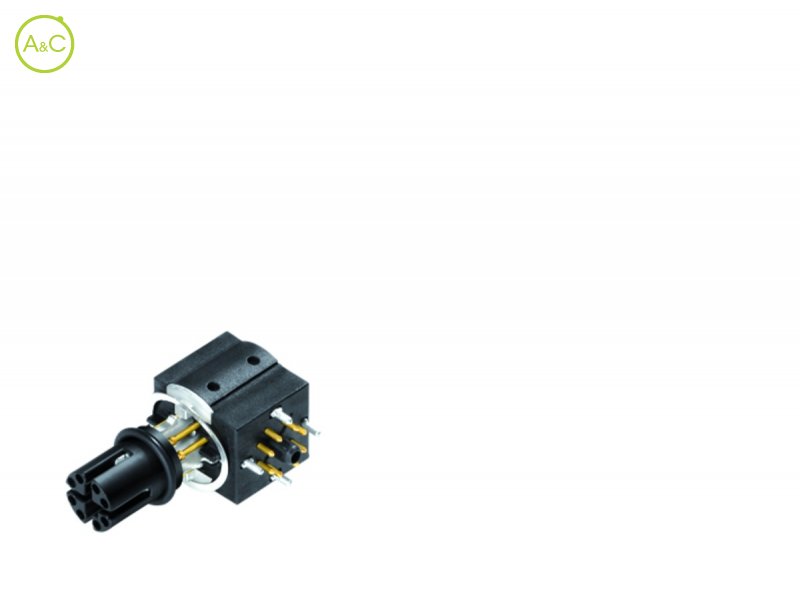

Article Number | 09 3782 202 08 |
Number Of Contacts | 8 contacts |
Connector Locking System | Screw (M12-X) |
Termination | Dip solder |
Protection Degree | IP67 |
Mating Cycles | >50 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 50 V AC 60 V DC |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | III |
Rated Current (40°) | 0.5 A |
Max. Contact Resistance | 10 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PA |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
