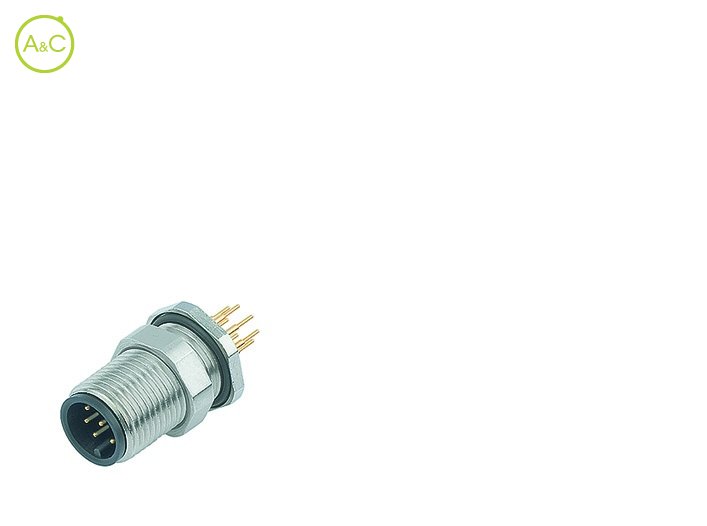

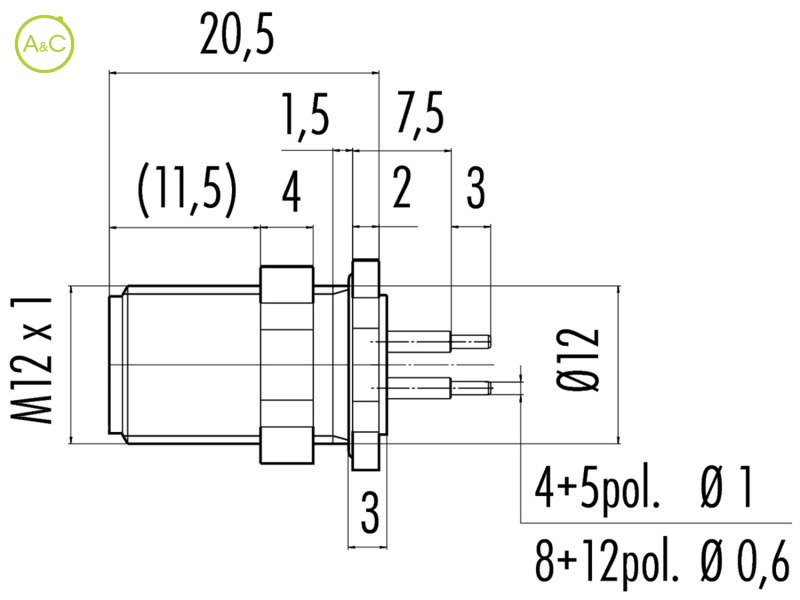

Male panel mount connector

Heeft u nog vragen over dit product?

Meer info over dit merk:

Article Number	09 4431 550 04
Connector Diameter	12 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-B)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass / Zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	09 4441 550 05
Connector Diameter	12 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-B)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass / Zinc diecasting nickel plated
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
