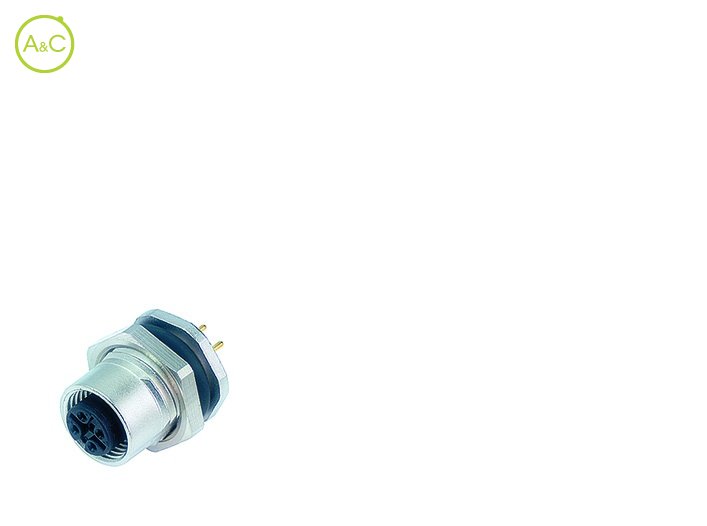

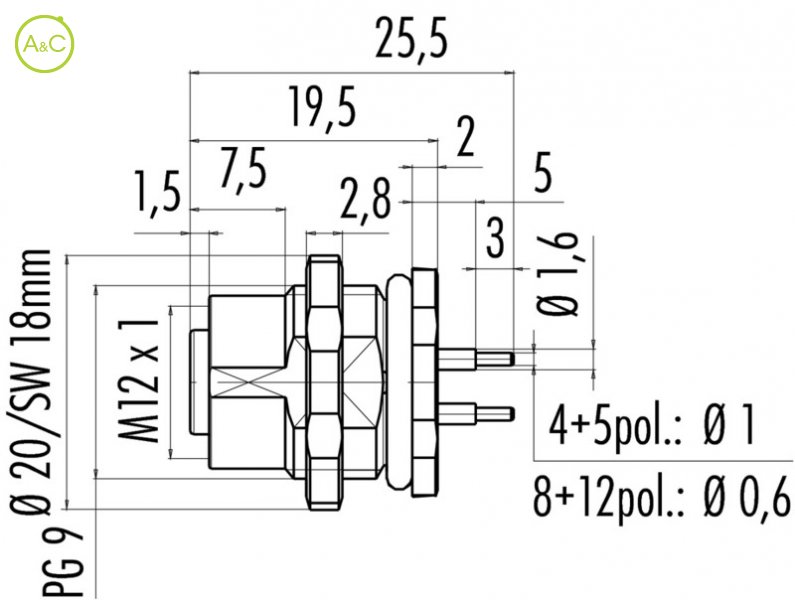

Female panel mount connector

  • Front fastened, dip solder, 6 mm contact length

Number Of Poles

  • 4
  • 5
Article Number 09 4432 90 04
Connector Diameter 20 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-B)
Termination Dip solder
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass / Zinc diecasting nickel plated
Fixing Thread PG9
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
