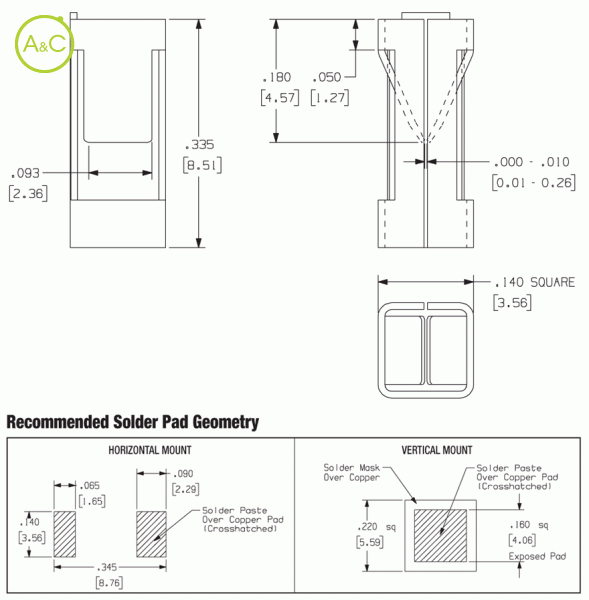

SMT Box Receptacles for High Temp Applications

1275

1275

1275

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Packaging

Loose
Reeled
Taped

Article Number	1275
Mating Terminal Size	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade
Material Thickness / Type	0.010" (0.25mm) C70250 High Performance Alloy
Standard Finish	100% Tin over Copper
Current Rating Ul	17 Amperes
Current Rating C-ul	17 Amperes
Feeder System	Surf-Shooter SMT ™Continuous Strip Feeder. Standard 24mm Tape Feeder
Ul File Number	E361770
Resistance Rating	10mΩ Max
Mating Entry	Top and Bottom
Temperature Rating	Up to 175°C
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (reeled Part No.)	/
Pieces Per Reel (taped Part No.)	/
Product sheet	Download product sheet

Article Number	6275
Mating Terminal Size	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade
Material Thickness / Type	0.010" (0.25mm) C70250 High Performance Alloy
Standard Finish	100% Tin over Copper
Current Rating Ul	17 Amperes
Current Rating C-ul	17 Amperes
Feeder System	Surf-Shooter SMT ™Continuous Strip Feeder. Standard 24mm Tape Feeder
Ul File Number	E361770
Resistance Rating	10mΩ Max
Mating Entry	Top and Bottom
Temperature Rating	Up to 175°C
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	5000
Pieces Per Reel (taped Part No.)	/
Product sheet	Download product sheet

Article Number	1275T	1275TH
Mating Terminal Size	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade
Material Thickness / Type	0.010" (0.25mm) C70250 High Performance Alloy	0.010" (0.25mm) C70250 High Performance Alloy
Standard Finish	100% Tin over Copper	100% Tin over Copper
Current Rating Ul	17 Amperes	17 Amperes
Current Rating C-ul	17 Amperes	17 Amperes
Feeder System	Surf-Shooter SMT ™Continuous Strip Feeder. Standard 24mm Tape Feeder	Surf-Shooter SMT ™Continuous Strip Feeder. Standard 24mm Tape Feeder
Ul File Number	E361770	E361770
Resistance Rating	10mΩ Max	10mΩ Max
Mating Entry	Top and Bottom	Top and Bottom
Temperature Rating	Up to 175°C	Up to 175°C
Pieces Per Reel (loose Part No.)	/	/
Pieces Per Reel (reeled Part No.)	/	/
Pieces Per Reel (taped Part No.)	630	630
Product sheet	Download product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
