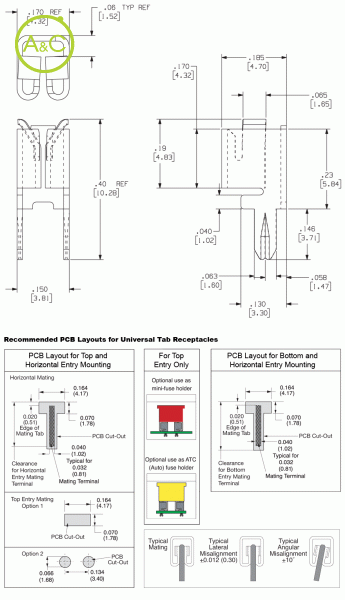

Universal Tab Receptacles for 0.025" (0.64mm) and 0.032" (0.81mm) Thick Terminals

Mating entry bottom and horizontal
Mounting type is Split leg Inward Splay

1299

1299

1299

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Packaging

Loose
Reeled

Article Number	1299
Extra Description	Mounting type is Split leg Inward Splay
Mating Terminal Size	0.015" (0.38mm) and 0.025" (0.64mm)
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Applicator System	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mating Type	Bottom and Horizontal
Mounting Type	Split Leg Inward Splay
Mounting Hole Diameter	2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating	10mOhm Max
Temperature Rating	-65° to 85°C
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (reeled Part No.)	/
Product sheet	Download product sheet

Article Number	6299
Extra Description	Mounting type is Split leg Inward Splay
Mating Terminal Size	0.015" (0.38mm) and 0.025" (0.64mm)
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Applicator System	Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mating Type	Bottom and Horizontal
Mounting Type	Split Leg Inward Splay
Mounting Hole Diameter	2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating	10mOhm Max
Temperature Rating	-65° to 85°C
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	4000
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
