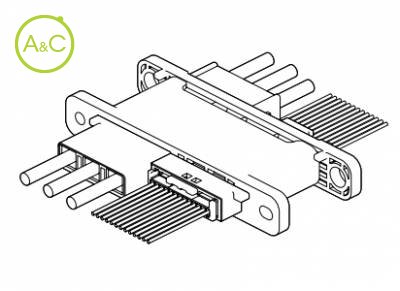

Plug for RIZ-L Connector

RIZ CONNECTOR L - Type

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	13LP-RIZ-K2GG-S3
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5/7.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	1.5/7.5 mm
Rated Current (ac/dc)	Signl/1.0 Power/15 A
Rated Voltage (ac/dc)	Signl/50 Power/250 V

Eigenschappen verschillen tussen varianten en subvarianten

This connector is a hybrid type single-row drawer connector combined signal and power supply circuits connector to connect the units, absorbs misalignment between units, and excels durability. RIZ connector with lever locking device is adopted as applicable socket to prevent incomplete mating. Space saving High durability Hybrid type Signal circuit 1.5mm pitch lever-locking type Standards UL Recognized E60389 CSA Certified LR20812 TUV R50157902 RoHS Compliant
