Plastic hoods black and metallized with screw locking
Meer info over dit merk:
Provertha
![Provertha](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 9
- 15
- 25
- 37
- 50

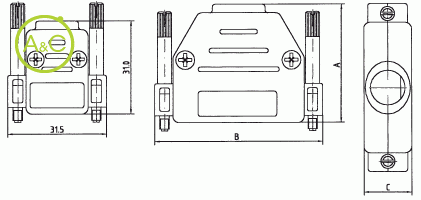

Article Number | 17 09 0B 38 T 000 | 17 09 0M 38 T 000 |
Number Of Contacts | 9 | 9 |
Upper Temperature | +90 °C | +90 °C |
Lower Temperature | -20 °C | -20 °C |
Plating | Nickel plated copper | Nickel plated copper |
Thread | UNC 4-40 | UNC 4-40 |
Remark | If you need coloured hoods please replace the B in the article number by R,Y,H,G or F | If you need coloured hoods please replace the B in the article number by R,Y,H,G or F |
Remark * | Multi opening possible with 25-50P | Multi opening possible with 25-50P |
Material | ABS UL 94-V0 | ABS UL 94-V0 |
Extra Information | Possibility to insert in 3 TE grid integrated anti-dust cover | Possibility to insert in 3 TE grid integrated anti-dust cover |

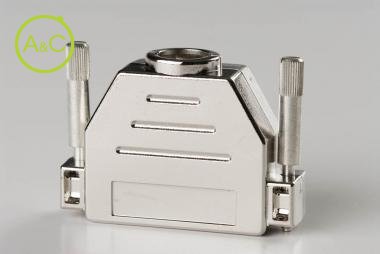

Hood Version | black with 38 mm thumb screw | Metalllized with 38 mm slotted screw |
Colour* | R= Red Y = Yellow H= Blue G = Grey F= Green | R= Red Y = Yellow H= Blue G = Grey F= Green |
Locking Style | knurled screw | knurled screw |
Cable Exit | Straight Angled 25-50p: 2x30°** | Straight Angled 25-50p: 2x30°** |
Cable Fixing | Clamp intern (al) | Clamp intern (al) |
Cable Diameter Internal Cable Clamp | 4-10 | 4-10 |
Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Eigenschappen verschillen tussen varianten en subvarianten
