Provertha
Number Of Poles
- 9
- 15
- 25
- 37
- 50

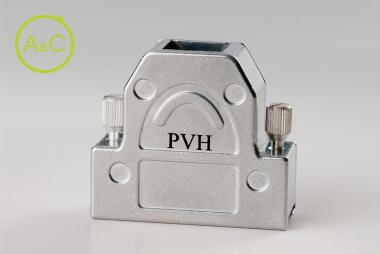

| Article Number | 17 09 DC 25 000 |
| Number Of Contacts | 9 |
| Upper Temperature | +90 °C |
| Lower Temperature | -20 °C |
| Thread | UNC 4-40 |
| Remark | Crimping flange needs te be ordered seperately |
| Material | Zn alloy |
| Extra Information | Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged |
| Locking Style | knurled screw |
| Cable Exit | Straight 180° Angled 25-50p: 2x30° |
| Cable Fixing | clamp intern (al) |
| Cable Diameter Internal Cable Clamp | 4-10 |
| Material/surface Locking Screws Diecast | St tin plated |
| Material/surface Cover Screws | ST Zinc plated |
Eigenschappen verschillen tussen varianten en subvarianten
