JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
| Article Number | 2P-SVF | 2P-SVF-V |
| Number Of Contacts | 2 | 2 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 5mm Pitch Disconnectable Crimp Style | 5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 5.00 mm | 5.00 mm |
| Rated Current (ac/dc) | 5 A | 5 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Nylon 6 UL94V-2 | Nylon 6 UL94V-0 |
Eigenschappen verschillen tussen varianten en subvarianten

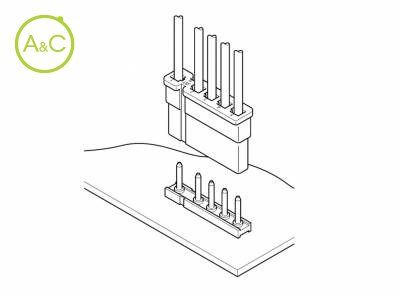

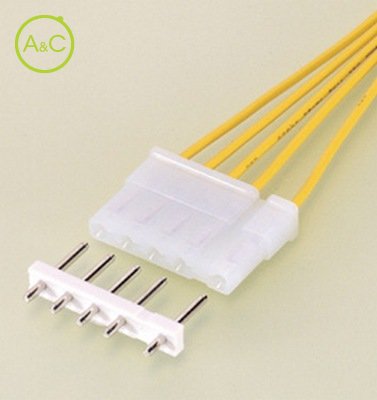

The V connector can have from two to six circuits. A single contact position is provided 7.5mm (.295") away from the adjacent position, while the pitch of the other positions is 5.0mm (.197"). This prevents reverse connection of the receptacle and header.
Anti-misinsertion construction
One position has a different pitch than the others. This provides the connector with polarization and prevents misinsertion.
Two-point contact
Each contact has two wiping areas which ensure stable and reliable connection.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Recognized R75171
RoHS Compliant
