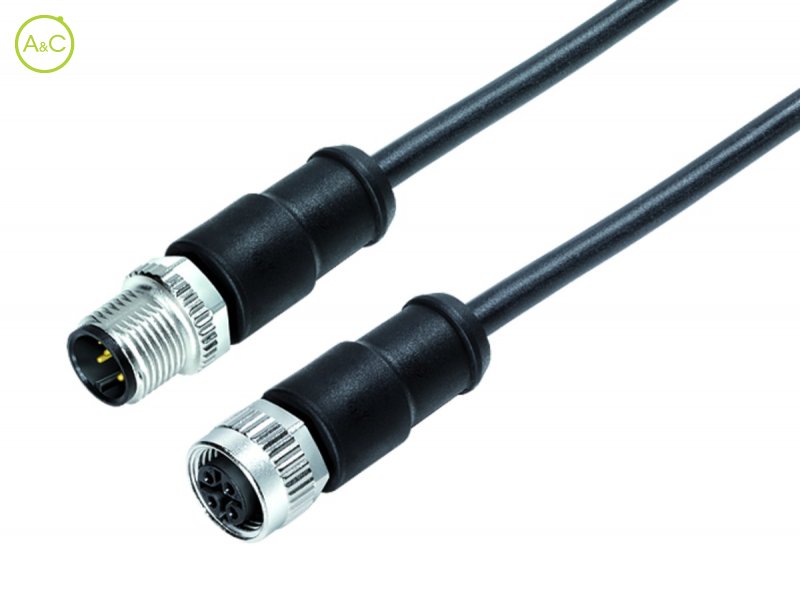

Connecting cable, male cable connector M12x1 & female connector M12x1
Meer info over dit merk:
Binder
Binder
Number Of Poles
- 4
| Article Number | 77 0606 0605 50704 0200 | 77 0606 0605 50704 0500 |
| Color | Black | Black |

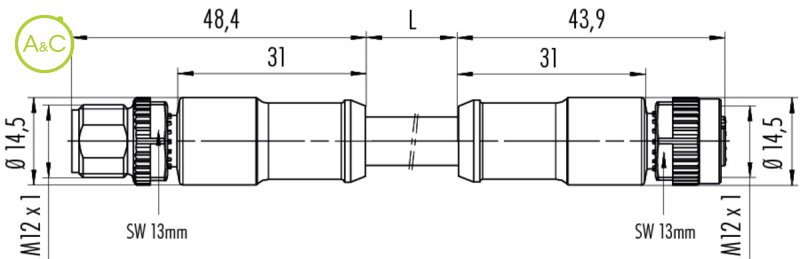

| Connector Diameter | 14.5 mm | 14.5 mm |
| Number Of Contacts | 4 contacts | 4 contacts |
| Connector Locking System | Screw (M12-A) | Screw (M12-A) |
| Termination | Moulded | Moulded |
| Wire Section | 1.5 mm² | 1.5 mm² |
| Protection Degree | IP69K | IP69K |
| Mating Cycles | >50 times | >50 times |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| Rated Voltage | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | II | II |
| Rated Current (40°) | 8 A | 8 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | Cuzn (Brass), Cusn (Bronze) | Cuzn (Brass), Cusn (Bronze) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PUR | PUR |
| Material Of Housing | PUR | PUR |
| Fixing Thread | M12x1,5 | M12x1,5 |
| Wire Gauge | 16 AWG | 16 AWG |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
