Connectoren
Terug naar productoverzicht
Number Of Poles
- 3
- 4
- 5
- 8

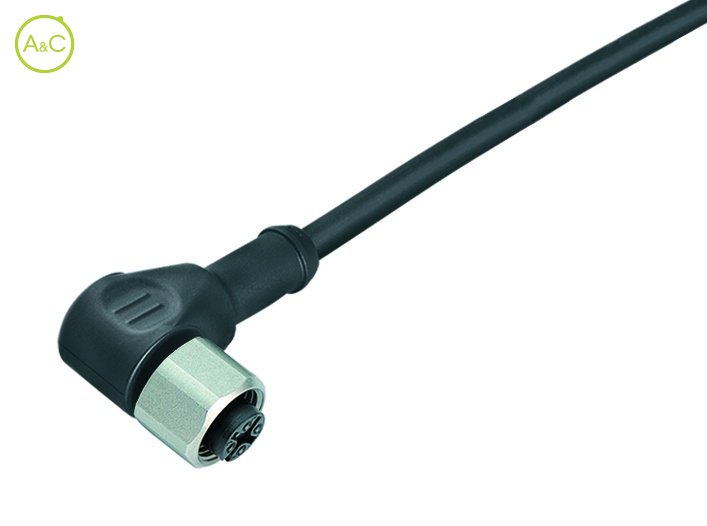

Article Number | 77 3734 0000 50003 0500 |
Old Article Number | 79 3434 55 04 |

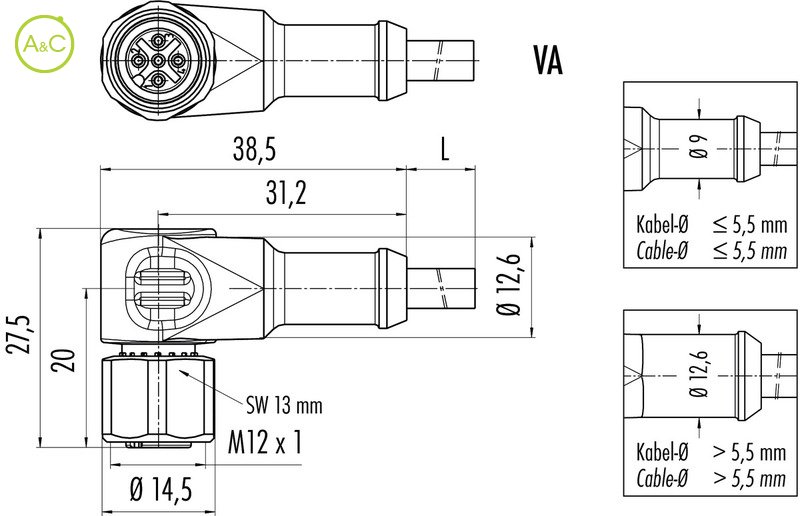

Connector Diameter | 14.5 mm |
Number Of Contacts | 3 contacts |
Connector Locking System | Screw (M12-A) |
Termination | Crimp, moulded |
Wire Section | 0.34 mm² |
Cable Length | 5 mm |
Protection Degree | IP68 |
Mating Cycles | >100 times |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 4 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PUR |
Material Of Housing | PUR |
Cable Diameter | 4,5 mm |
Cable | 3 x 0,34 PUR mm² |
Cable Jacket Material | PUR |
Insulation Wire | PVC |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
