Connectoren
Terug naar productoverzicht
Number Of Poles
- 3
Article Number | 79 5232 33 04 |

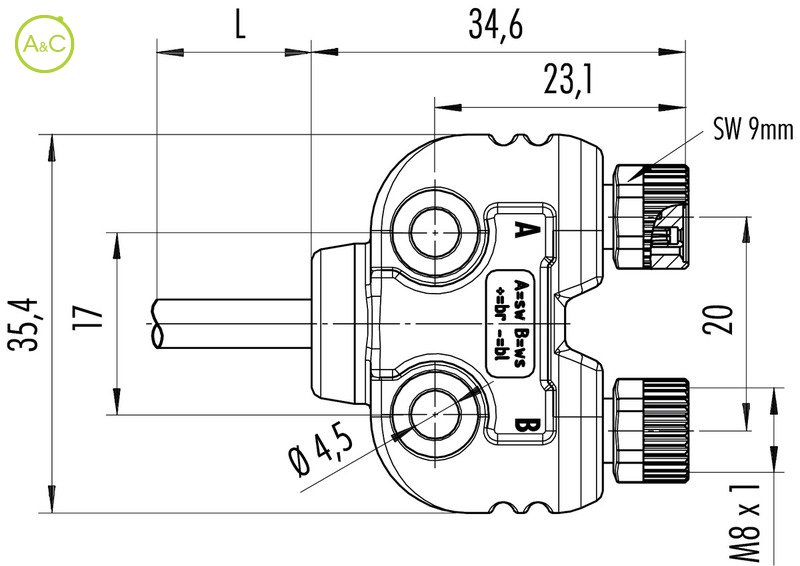

Connector Diameter | 35.4 mm |
Number Of Contacts | 3 contacts |
Connector Locking System | Screw |
Protection Degree | IP68 |
Mating Cycles | >100 times |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
Rated Voltage | 30 |
Rated Impuls Voltage | 800 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 4 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | Pin CuZn (Brass), Socket (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PUR |
Material Of Housing | PUR |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
