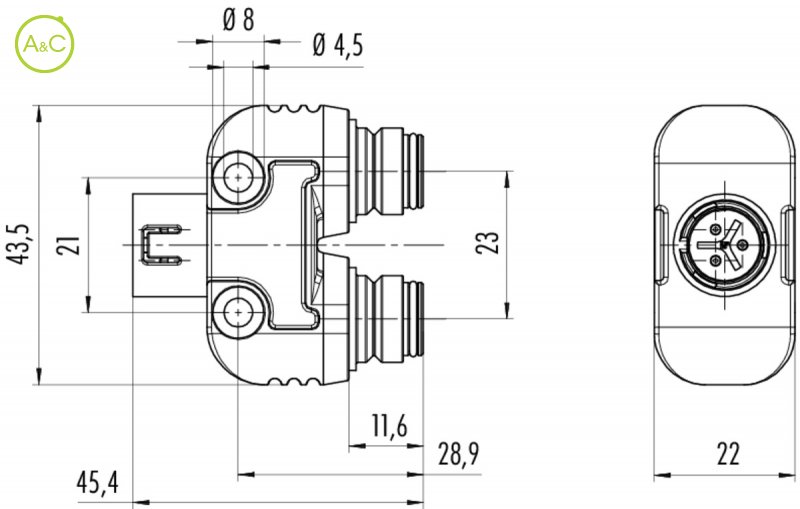

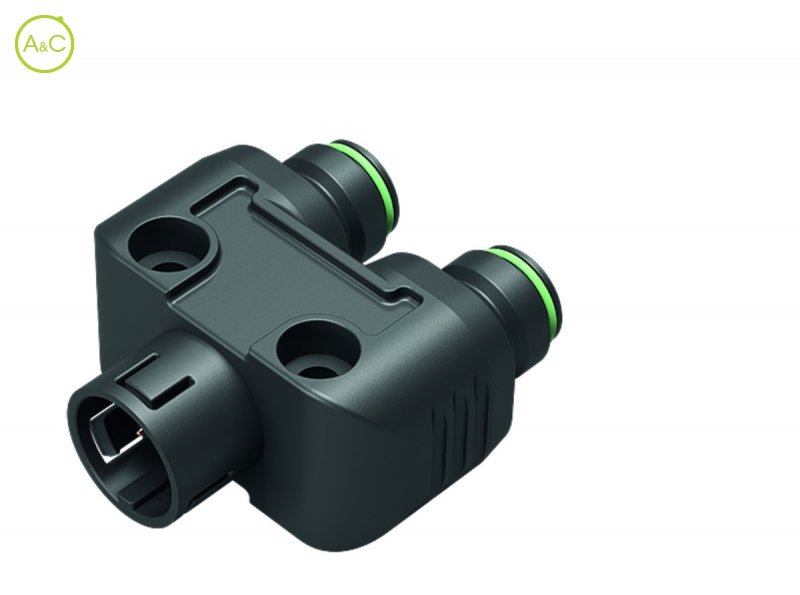

Snap-In IP67 double distributor box, 3 contacts

Shielding is not possible

79-9179-000-03

79-9179-000-03

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

3
5

Article Number	79 9179 000 03
Number Of Contacts	3 contacts
Connector Locking System	Snap
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	7 A
Material Of Contact	Pin:CuZn (Brass)/ Socket: CuSn (bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Product sheet	Download product sheet

Article Number	79 9180 000 05
Number Of Contacts	5 contacts
Connector Locking System	Snap
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	7 A
Material Of Contact	Pin:CuZn (Brass)/ Socket: CuSn (bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
