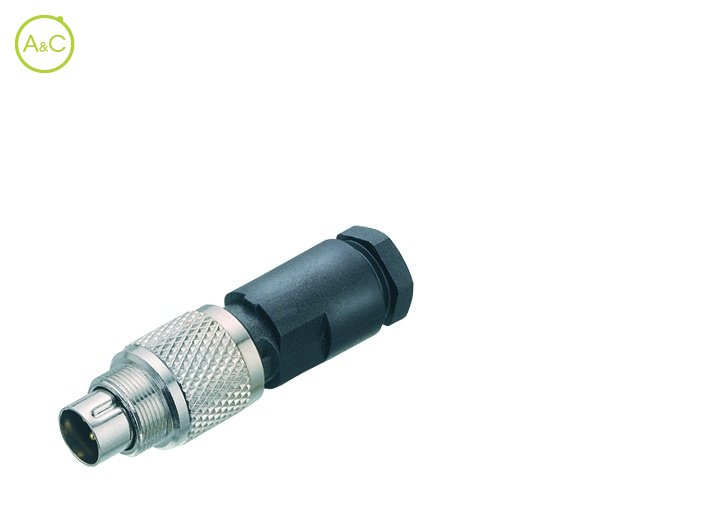

Male cable connector

Heeft u nog vragen over dit product?

Meer info over dit merk:

Article Number	99 0401 00 02

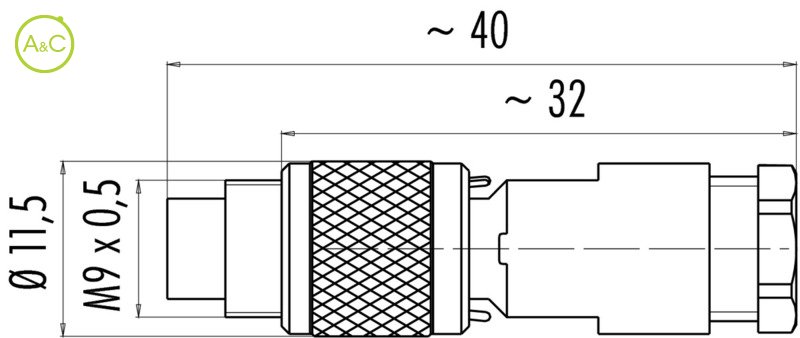

Connector Diameter	11.5 mm
Number Of Contacts	2 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B), CuZn (Brass nickel plated)
Cable Outlet	3,5-5 mm
Product sheet	Download product sheet

Article Number	99 0405 00 03
Connector Diameter	11.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B), CuZn (Brass nickel plated)
Cable Outlet	3,5-5 mm
Product sheet	Download product sheet

Article Number	99 0409 00 04
Connector Diameter	11.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B), CuZn (Brass nickel plated)
Cable Outlet	3,5-5 mm
Product sheet	Download product sheet

Article Number	99 0413 00 05
Connector Diameter	11.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B), CuZn (Brass nickel plated)
Cable Outlet	3,5-5 mm
Product sheet	Download product sheet

Article Number	99 0421 00 07
Connector Diameter	11.5 mm
Number Of Contacts	7 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B), CuZn (Brass nickel plated)
Cable Outlet	3,5-5 mm
Product sheet	Download product sheet

Article Number	99 0425 00 08
Connector Diameter	11.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PA (UL 94 VH-B), CuZn (Brass nickel plated)
Cable Outlet	3,5-5 mm
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
