Binder
Number Of Poles
- 4
- 5

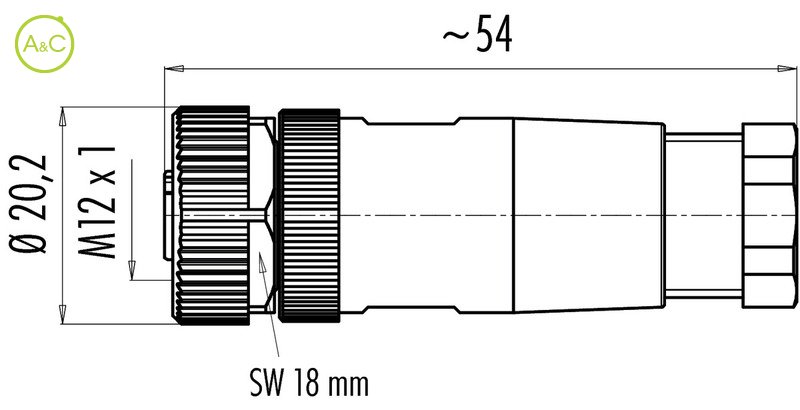

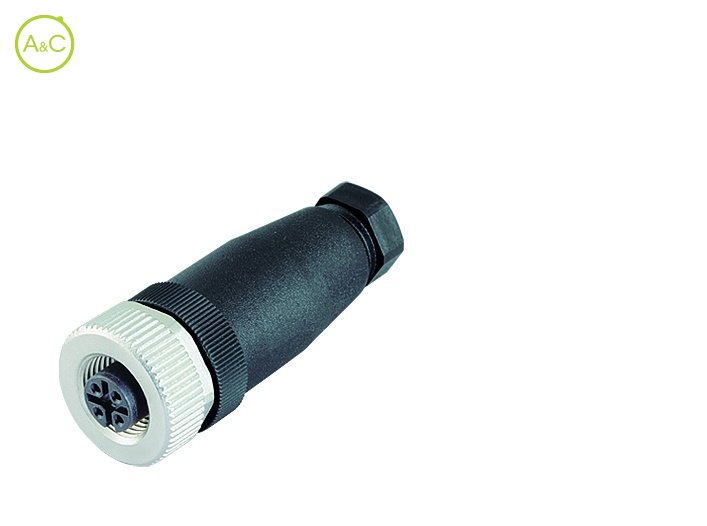

| Article Number | 99 0524 14 04 | 99 0524 12 04 |
| Connector Diameter | 20.2 mm | 20.2 mm |
| Number Of Contacts | 4 contacts | 4 contacts |
| Connector Locking System | Screw (M12-A) | Screw (M12-A) |
| Termination | Wire clamp | Wire clamp |
| Wire Section | 0.5 mm² | 0.5 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >100 times | >100 times |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | III | III |
| Rated Current (40°) | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA |
| Material Of Housing | PA, zinc diecasting nickel plated | PA, zinc diecasting nickel plated |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
