Connectoren
Terug naar productoverzicht
Number Of Poles
- 4
- 5
- 6
- 7
- 8

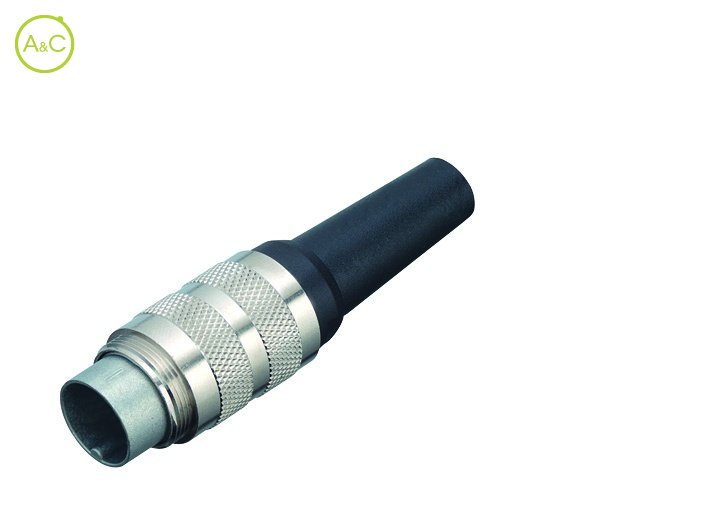

Article Number | 99 2009 700 04 |

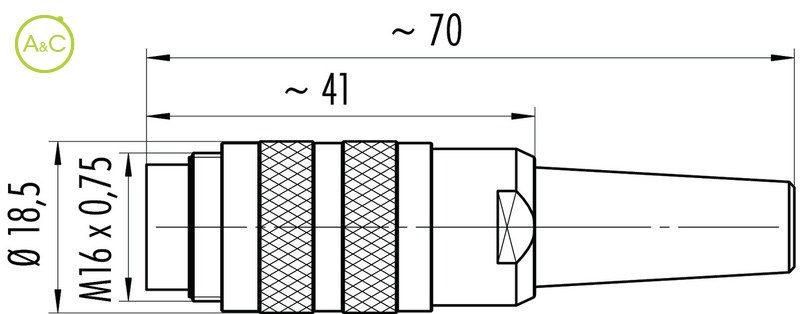

Connector Diameter | 18.5 mm |
Number Of Contacts | 4 contacts |
Connector Locking System | Screw (M16) |
Termination | Crimp |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 (32) |
Rated Impuls Voltage | 1500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 6 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Ag (Silver) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass nickel plated) |
Cable Outlet | 4-6 mm |
Remark * | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
