Number Of Poles
- 3
- 4

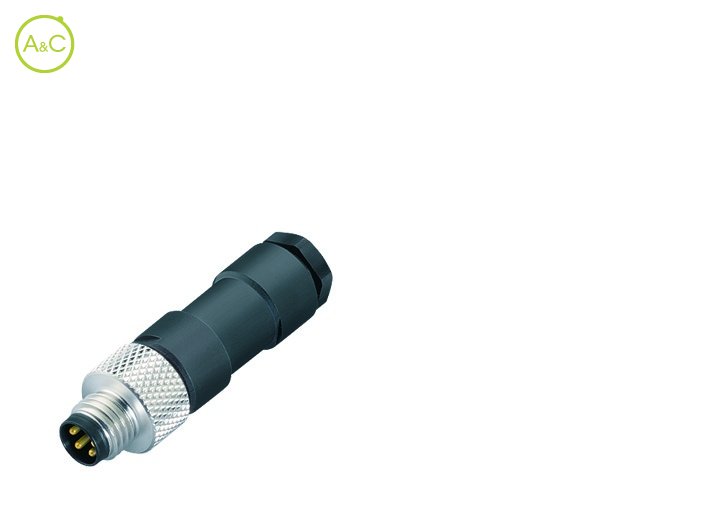

Article Number | 99 3379 00 03 |

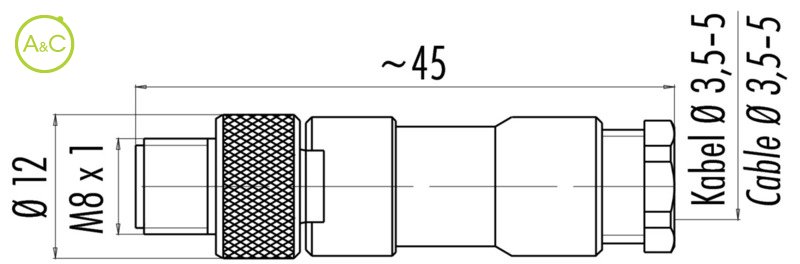

Connector Diameter | 12 mm |
Number Of Contacts | 3 contacts |
Connector Locking System | Screw (M8) |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >100 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 |
Rated Impuls Voltage | 800 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | III |
Rated Current (40°) | 4 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Au (Gold) |
Material Of Insert | PA (UL 94 HB) |
Material Of Housing | PBT/PA/CuZn (Brass) |
Cable Outlet | 3,5-5 mm |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
