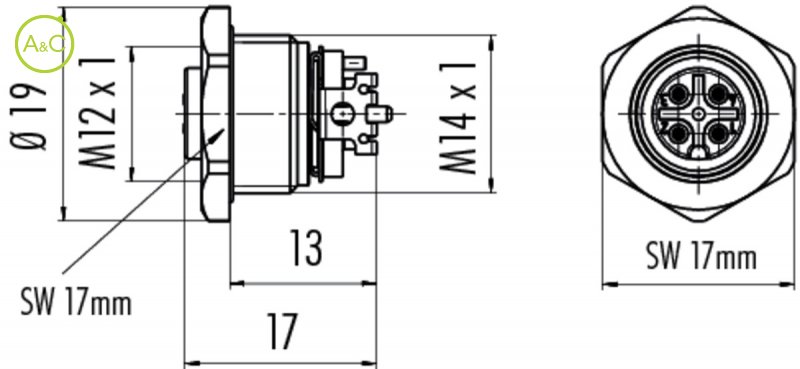

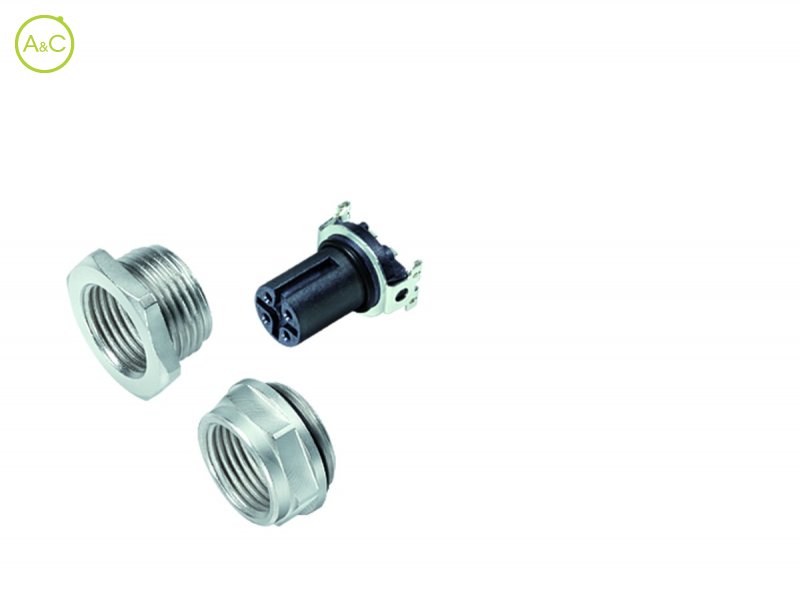

Female panel mount connector

  • SMT, with housing

Number Of Poles

  • 4
  • 5
  • 8
Article Number 99 3432 351 04 99 3432 352 04
Connector Diameter 17 mm 17 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination SMT SMT
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert LCP - GF30 LCP - GF30
Product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
