Connectoren
Terug naar productoverzicht
Number Of Poles
- 6
- 9
- 12
- 16
- 19

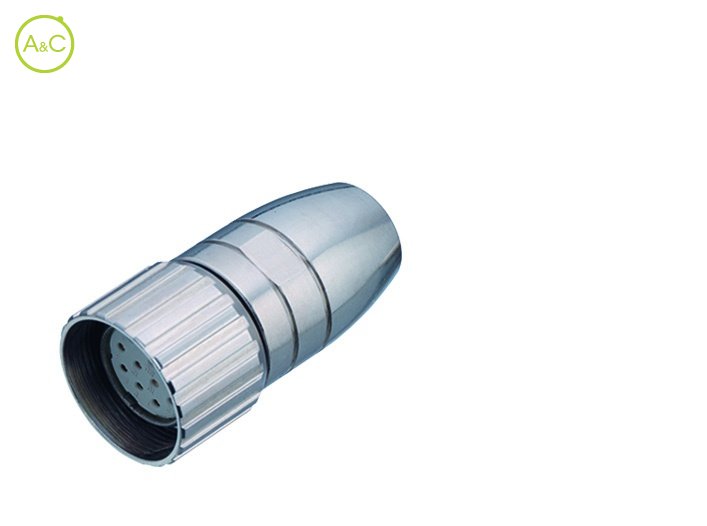

Article Number | 99 4646 00 06 |

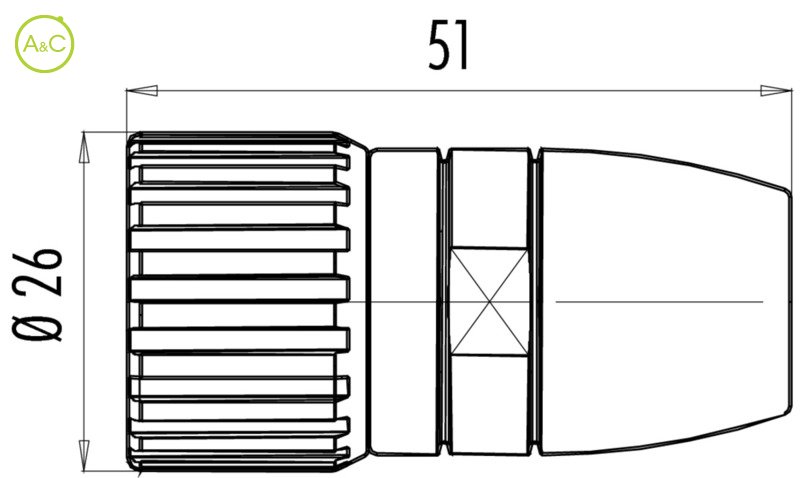

Connector Diameter | 26 mm |
Number Of Contacts | 6 contacts, clockwise |
Connector Locking System | Screw (M23) |
Termination | Solder |
Wire Section | 2.5 mm² |
Protection Degree | IP67 |
Mating Cycles | >50 times |
Upper Temperature | +125 °C |
Lower Temperature | -20 °C |
Rated Voltage | 300 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | III |
Rated Current (40°) | 20 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PBT/PA66 |
Material Of Housing | CuZn (Brass, nickel plated) |
Cable Outlet | 6-10 mm |
Remark * | *Earth sleeves with seals have to be ordered seperately |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
