Connectoren
Terug naar productoverzicht
Number Of Poles
- 3
- 5
- 8
- 12
Article Number | 99 9106 470 03 |

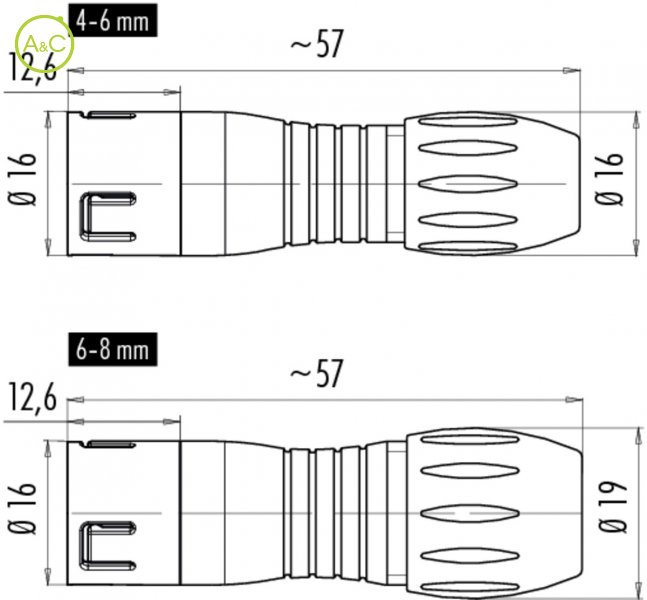

Connector Diameter | 16 mm |
Number Of Contacts | 3 contacts |
Connector Locking System | Snap-in |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP67 |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 2 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 7 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PA (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
