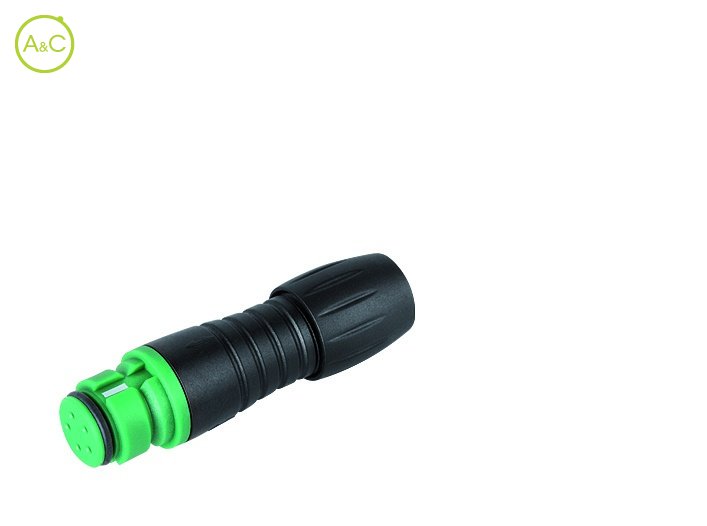

Female cable connector

Color code green

99-9206-070-03

99-9206-070-03

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

3
4
5
8

Article Number	99 9206 070 03

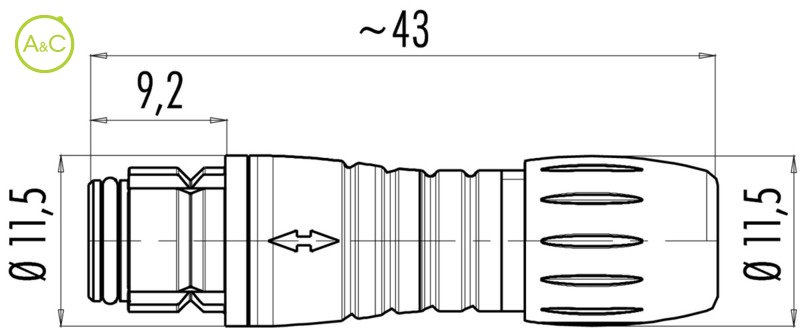

Connector Diameter	11.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Cable Outlet	3-5 mm
Product sheet	Download product sheet

Article Number	99 9210 070 04
Connector Diameter	11.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Cable Outlet	3-5 mm
Product sheet	Download product sheet

Article Number	99 9214 070 05
Connector Diameter	11.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	63
Rated Impuls Voltage	800 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Cable Outlet	3-5 mm
Product sheet	Download product sheet

Article Number	99 9226 070 08
Connector Diameter	11.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	63
Rated Impuls Voltage	800 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Cable Outlet	3-5 mm
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
