Male Terminal AWG 22 to 18

AIT CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Applicable Wire

AWG 18
AWG 22 to 20

Article Number	SAITW-A02GF-064	SAITW-A02T-064
Upper Temperature	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style	2.54mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.75 to 0.8 (AWG #18) mm²	0.75 to 0.8 (AWG #18) mm²
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V	14 V
Remark	Gold plated	Tin plated

Article Number	SAITW-A03GF-064	SAITW-A03T-064
Upper Temperature	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style	2.54mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.3 to 0.5 (AWG #22 to #20) mm²	0.3 to 0.5 (AWG #22 to #20) mm²
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V	14 V
Remark	Gold plated	Tin plated

Eigenschappen verschillen tussen varianten en subvarianten

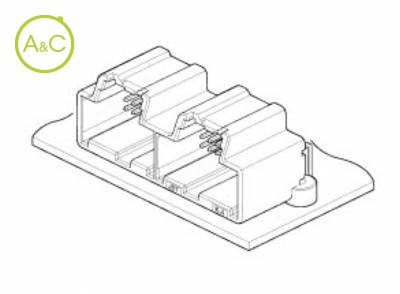

0.64 non-waterproof connector series based on the same footprint of USCAR standard. This connector has an abundant variation of PC board lock mechanism, circuit number development, and an adoption of designing wire-to-wire type, hence it enables to select the specified connector type according to your needs. Specifications conform to footprint of USCAR standard. Independent secondary locking features. Standard RoHS Compliant USCAR
