Female Terminal AWG 22 to 18

AIT-II CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Applicable Wire

AWG 18
AWG 22 to 20

Article Number	SAIT-A02GF-M064	SAIT-A02T-M064
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)
Applicable Wire Size	0.75 to 0.85 (AWG #18) mm²	0.75 to 0.85 (AWG #18) mm²
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Gold plated	Tin plated

Article Number	SAIT-A03GF-M064	SAIT-A03T-M064
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)
Applicable Wire Size	0.3 to 0.5 (AWG #22 to #20) mm²	0.3 to 0.5 (AWG #22 to #20) mm²
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Gold plated	Tin plated

Eigenschappen verschillen tussen varianten en subvarianten

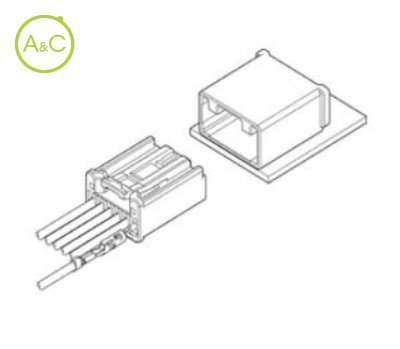

0.64 unsealed low-profile connector series for use in a wide range of automotive applications. Ultra Low Profile Connector Over 30% height reduction as compared to the standard USCAR footprints. Variations There are multiple varieties of AIT-II Connectors which can satisfy your needs. RoHS Compliant
