Male Connector

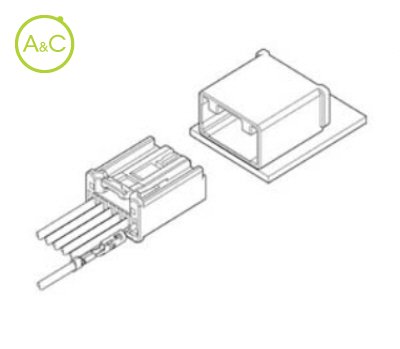

AIT-II CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	AIT2WSB-02A-1AK
Color	Black
Number Of Contacts	2
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive
Pitch / Style	2.54 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	14 V

Article Number	AIT2WSB-03A-1AK
Color	Black
Number Of Contacts	3
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive
Pitch / Style	2.54 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	14 V

Article Number	AIT2WSB-06-1AK	AIT2WSB-06-1FS
Color	Black	White
Number Of Contacts	6	6
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V

Article Number	AIT2WSB-07-1FK	AIT2WSB-07-1FS
Color	Black	White
Number Of Contacts	7	7
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V

Article Number	AIT2WSB-10A-2AK	AIT2WSB-10A-2BH
Color	Black	Gray
Number Of Contacts	10	10
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V

Article Number	AIT2WSB-22-2AK
Color	Black
Number Of Contacts	22
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Automotive
Pitch / Style	2.54 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	14 V

Eigenschappen verschillen tussen varianten en subvarianten

0.64 unsealed low-profile connector series for use in a wide range of automotive applications. Variations There are multiple varieties of AIT-II Connectors which can satisfy your needs. RoHS Compliant
