Female Connector for AN Connecot

  • AN CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Number Of Poles

  • 1
Article Number AN-A-2S-32-TF
Number Of Contacts 1
Upper Temperature +85 °C
Lower Temperature -40 °C
General Description For Antenna Connection
Connection Type Printed Circuit Board Connectors
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Eigenschappen verschillen tussen varianten en subvarianten

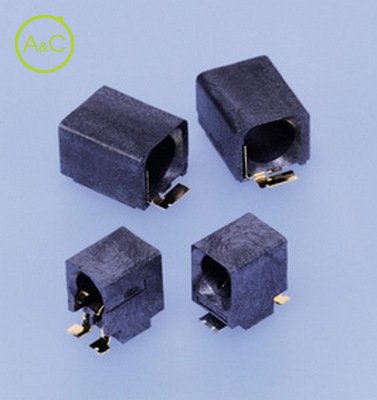

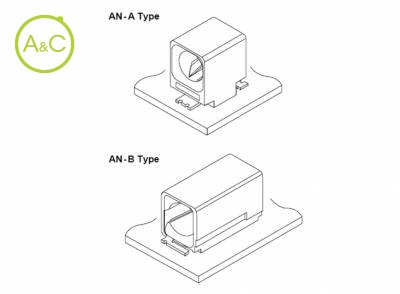

Designed for use in mobile phone and other small communications equipment. This antenna connector will accommodate both; 2.6mm (type A) and 3.35mm (type B) diameter antennas. Also, as with other JST connectors the material used is a high grade LCP (Liquid Crystal Polymer), which not only makes this suitable for SMT environments but also facilitates product reliability. Durability Highly reliable structure guarantees up to 10,000 insertion and withdrawal operations. Embossed tape for automatic mounting Supplied in embossed tape packaging for automatic surface mounting operation. RoHS Compliant
