Number Of Poles
- 6
Article Number | B06B-F31MK-GGXXR | B06B-F31MK-GGXYR | B06B-F31MK-GGYYR |
Number Of Contacts | 6 | 6 | 6 |
Upper Temperature | +105 °C | +105 °C | +105 °C |
Lower Temperature | -55 °C | -55 °C | -55 °C |
General Description | 3.81mm Pitch Disconnectable Crimp Style (Wire to Board) | 3.81mm Pitch Disconnectable Crimp Style (Wire to Board) | 3.81mm Pitch Disconnectable Crimp Style (Wire to Board) |
Connection Type | Factory Automation Connectors | Factory Automation Connectors | Factory Automation Connectors |
Pitch / Style | 3.81 mm | 3.81 mm | 3.81 mm |
Rated Current (ac/dc) | 15 A | 15 A | 15 A |
Rated Voltage (ac/dc) | 250 V | 250 V | 250 V |
Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) |
Remark | XX Keying | XY Keying | YY Keying |
Eigenschappen verschillen tussen varianten en subvarianten

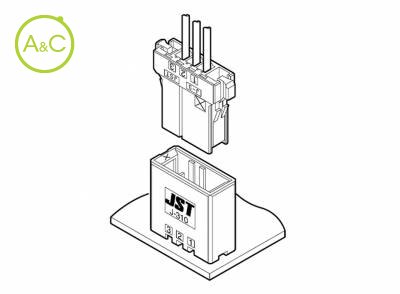

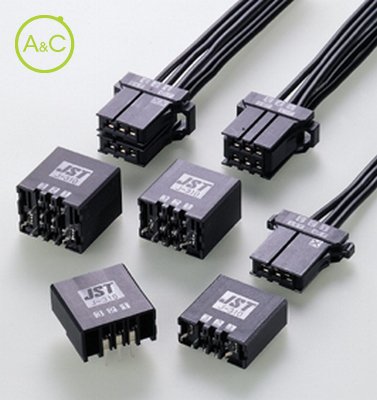

Available in both wire-to-board and wire-to-wire connection, the JFA connector is applicable to a wide range of applications e.g. from signal to output circuits.
Double-spring construction, to achieve superior contact reliablity the socket contact has two springs, the main spring and the contact pressure adjustment spring. In addition, a spring stopper is incorporated in the connector to facilitate resistance to excessive pressure. Housing lances.
Double-spring construction
For superior contact reliability, the receptacle contact has a double-spring construction consisting of a main spring and a contact pressure adjustment spring.
In addition, a spring stopper is incorporated in the connector to facilitate resistance to excessive pressure.
Housing lances
Lances are incorporated into the housing design to secure the contacts, therefore keeping contact insertion force low and avoiding contact deformation.
Secure locking method
When housings are mated, a clear locking sound can be heard to ensure secure engagement.
Recognition mark
Both contacts and application tools have identification marks to prevent incorrect combinations.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified J-50015641
RoHS Compliant
