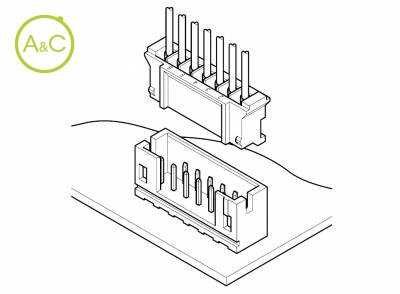

This is a thin, low-profile 2.0mm pitch connector 8.0mm in height after mounting and 4.5mm in width. It is designed to meet the demand for high-density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost. Reliable contact The contact has long dimples near the centre to ensure a good connection at all times, even under conditions of vibration and mechanical abuse, and when used with low voltage and low current circuits. Fully shrouded header The fully shrouded header has walls on all four sides to prevent improper connection to the mating housing and to prevent the intrusion of flux and other contaminants. Printed circuit board retention mechanism The solder side of the header has a retention mechanism that prevents it from floating during soldering. As a result, the header can be positioned accurately. Surface mount model (SMT) This connector is also available in a surface mount configuration. Its housing is made of heat resistant resin so that it is not adversely affected during reflow soldering. Because of its tiny size and ability to be surface mounted, this connector meets the demand for high-density mounting of components inside electronic products. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75087 RoHS Compliant
