| Article Number | B8B-PHDSS |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark | Glass-filled nylon |
| Article Number | B10B-PHDSS | B10B-PHDSS-B |
| Number Of Contacts | 10 | 10 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B12B-PHDSS | B12B-PHDSS-B |
| Number Of Contacts | 12 | 12 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B14B-PHDSS | B14B-PHDSS-B |
| Number Of Contacts | 14 | 14 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B16B-PHDSS | B16B-PHDSS-B |
| Number Of Contacts | 16 | 16 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B18B-PHDSS | B18B-PHDSS-B |
| Number Of Contacts | 18 | 18 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B20B-PHDSS | B20B-PHDSS-B |
| Number Of Contacts | 20 | 20 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B22B-PHDSS | B22B-PHDSS-B |
| Number Of Contacts | 22 | 22 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B24B-PHDSS | B24B-PHDSS-B |
| Number Of Contacts | 24 | 24 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B26B-PHDSS | B26B-PHDSS-B |
| Number Of Contacts | 26 | 26 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B28B-PHDSS | B28B-PHDSS-B |
| Number Of Contacts | 28 | 28 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B30B-PHDSS | B30B-PHDSS-B |
| Number Of Contacts | 30 | 30 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B32B-PHDSS | B32B-PHDSS-B |
| Number Of Contacts | 32 | 32 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
| Article Number | B34B-PHDSS | B34B-PHDSS-B |
| Number Of Contacts | 34 | 34 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Glass-filled nylon | Nylon |
Eigenschappen verschillen tussen varianten en subvarianten

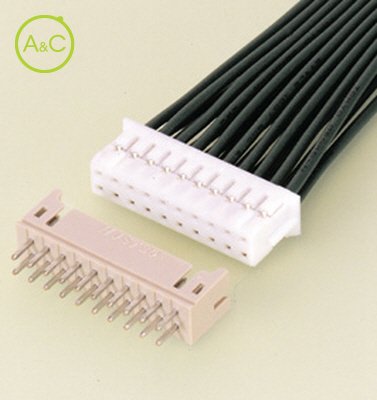

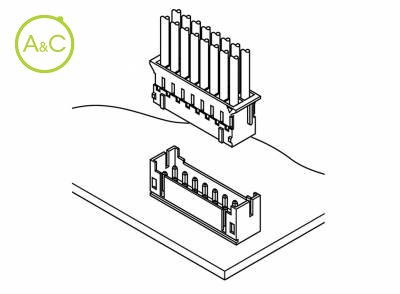

This is a 2.0mm (.079") pitch, crimp style, double-row, wire-to-board connector. It is designed to meet the demand for high density and low-profile connection.
Compact
2.0mm (.079") pitch connector, 8.8mm (.346") in height after mounting and 5.0mm (.179") in width. This compact design meets the demand for high-density connection.
Reliable contacts
The box contact supplies stable contact performance even under conditions of vibration, distortion, low voltage or low current.
Fully shrouded header
The header is fully shrouded, having walls on all four sides to prevent improper mating and the intrusion of flux and other contaminants.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
