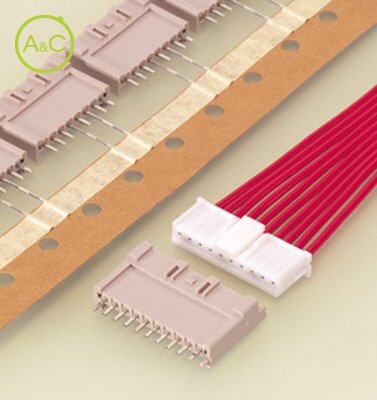

Top Entry Shrouded Header THT On Radial-tape High box type

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	BH02B-XASS-BN-T	BH02B-XASS-T
Number Of Contacts	2	2
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	BH03B-XASS-BN-T	BH03B-XASS-T
Number Of Contacts	3	3
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark

Article Number	BH04B-XASS-BN-T	BH04B-XASS-T
Number Of Contacts	4	4
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark

Article Number	BH05B-XASS-BN-T	BH05B-XASS-T
Number Of Contacts	5	5
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark

Article Number	BH06B-XASS-BN-T	BH06B-XASS-T
Number Of Contacts	6	6
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark

Article Number	BH07B-XASS-BN-T	BH07B-XASS-T
Number Of Contacts	7	7
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark

Article Number	BH08B-XASS-BN-T	BH08B-XASS-T
Number Of Contacts	8	8
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark

Eigenschappen verschillen tussen varianten en subvarianten

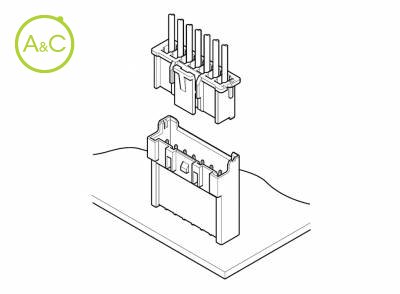

The header is tall and fully shrouded so as to prevent the resin used to coat the PC board coming into contact with the mating pins. Designed for use specifically with resin coated ("potted") PC boards. The header is designed to accept XA mating receptacles. Secure locking device prevents accidental diSConnection. Header for 2.5mm (.098") pitch XA connector for use specifically with resin coated ("potted") PC boards This header is tall and fully shrouded so as to prevent the resin used to coat the PC board from coming into contact with the mating pins. Interchangeability Designed to accept XA mating receptacles. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9851220 RoHS Compliant
