Socket Housing

  • BHS CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Number Of Poles

  • 2
Article Number BHSR-02VS-1(N)
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 3.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type Wire to Wire Connectors
Pitch / Style 3.50 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 1,4 V
Eigenschappen verschillen tussen varianten en subvarianten

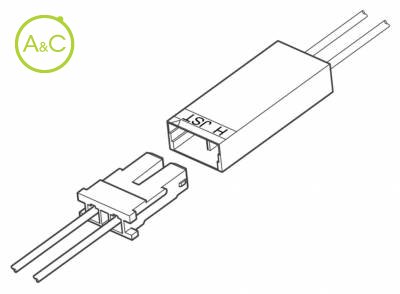

Wire-to-wire version connectors, designed for connecting liquid crystal display back light lamp to their starters. Compact and applicable to high voltage The BHS connector is more compact than JST's BHM connector, yet applicable to the high voltage, with the contact lance mechanism. Adopt wide large for socket contact In order to correspond to miniaturization and high voltage, wide large for socket contact is adopted. Standards UL Recognized E60389 CSA Certified LR20812 Wire to Board Version See link; https://www.jst.co.uk/productSeries.php?pid=171&cat=30 RoHS Compliant
