Number Of Poles
- 15
- 26
- 44
- 62
- 78

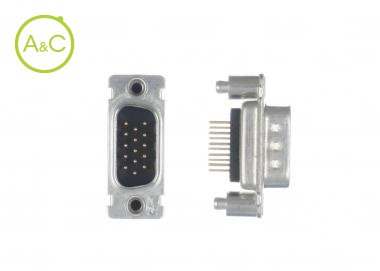

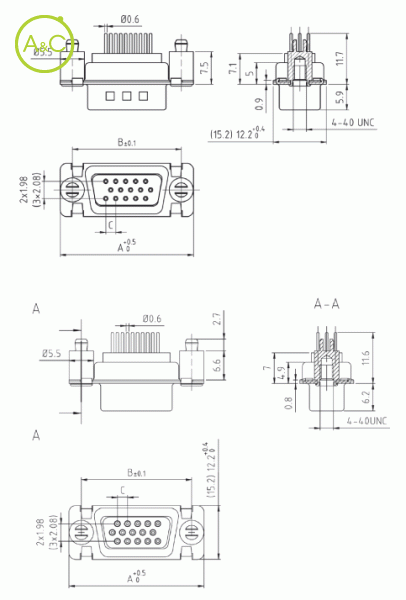

Article Number | BL4HDT 15 52 G. | BL4HT 15 62 G. |
Number Of Contacts | 15 | 15 |
Upper Temperature | +125 °C | +125 °C |
Lower Temperature | -55 °C | -55 °C |
Contact Plating | Mating area: Au over Ni Termination area: Sn over Ni | Mating area: Au over Ni Termination area: Sn over Ni |
Housing Material | St. tinned | St. tinned |
Contact Material | Cu alloy | Cu alloy |
Remark | For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 | For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 |
Insulation Resistance | ≥10 MΩ | ≥10 MΩ |
Extra Information | Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt | Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt |
Contact Resistance | ≤10m | ≤10m |
Gender | Male | Female |
Insulator Material | PBT GF UL 94-V0 | PBT GF UL 94-V0 |
Mating/unmating Force Fully Loaded Connector | ≤50 | ≤50 |
Air And Creepage Distance | min. 0,6 mm | min. 0,6 mm |
Test Voltage U Eff | 1000 | 1000 |
Working Voltage | 60 | 60 |
Current Rating At 20°c | 3 | 3 |
Quality Class* | Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles | Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles |
Eigenschappen verschillen tussen varianten en subvarianten
