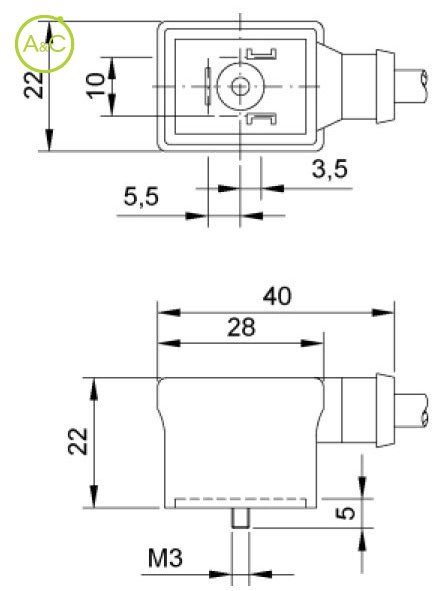

Style B rectangular connector

Red Led + diode

CF - CF11 24A3R

CF - CF11 24A3R

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Housing Material

PUR
TPR

Article Number	CF13 24A3R 414 3000 0	CF13 24A8R 414 3000 0
Protection Degree	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C
Contact Type	Fork	Fork
Circuits	Red Led + diode	Red Led + diode
Housing Oil Resistance	Very good	Very good
Housing Hardness	90 shore A	90 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	10 to 50	70 to 250
Max. Currrent	10 A @40°C	10 A @40°C
Clamping Voltage	-1 V	-1 V
Housing Colour	Transparent	Transparent
Remark	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Article Number	CF11 24A3R 414 3000 0	CF11 24A8R 414 3000 0
Protection Degree	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C
Contact Type	Fork	Fork
Circuits	Red Led + diode	Red Led + diode
Housing Oil Resistance	Occasional contact	Occasional contact
Housing Hardness	73 shore A	73 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	10 to 50	70 to 250
Max. Currrent	10 A @40°C	10 A @40°C
Clamping Voltage	-1 V	-1 V
Housing Colour	Black	Black
Remark	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Eigenschappen verschillen tussen varianten en subvarianten
