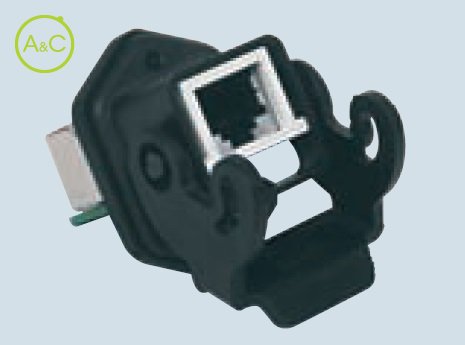

IP65/IP67 connector in bulkhead housing, female inserts

  • Connector in insulating enclosure and insert with 8 data contacts
Download product sheet
  • General
Article Number CJZ 8 IN
Number Of Poles 8
Connection Type Crimp connection
Contact Type Female
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 120 °C
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 2.1 A
Nominal Rated Voltage 50 V
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CWK 10 J2M8
Patch cord with 2 RJ45 connectors, male inserts
CWK 2 J2M8
Patch cord with 2 RJ45 connectors, male inserts
CWK 5 J2M8
Patch cord with 2 RJ45 connectors, male inserts
CYG 8 JF
Female RJ 45 coupling, 8 data contacts
CYG 8/2 JF
Female RJ 45 coupling, 8 data contacts/ 2 power contacts
