- General

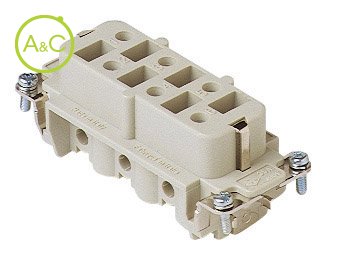

Article Number | CPF 06 |
Pollution Degree | 3 |
Number Of Poles | 6 |
Connection Type | Screw connection |
Contact Type | Female |
Extra Information | With protective conductor |
Ambient Lower Temperature | -40 °C |
Ambient Upper Temperature | 125 °C |
Min. Cross Section Without End Sleeve | 1.5 mm² |
Max. Cross Section Without End Sleeve | 6 mm² |
Required Housing |
C-type size 77.27 C7 size 77.27 Simplex size 77.27 V-type size 77.27 BIG size 77.27 T-type size 77.27 T-type/W size 77.27 T-type/H size 77.27 T-type/C size 77.27 W-type size 77.27 EMC size 77.27 Central Lever size 77.27 High protection IP68 LS-type size 77.27 COB size 77.27 |
Diameter Male Contact | 3.5 mm |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
Material Insert | Thermoplastic |
Material Contact | Brass |
Plating Of Contact | Silver |
Max. Rated Current | 35 A |
Nominal Rated Voltage | 690 V |
Over Voltage Category | III |
Rated Surge Voltage | 6 kV |
Eigenschappen verschillen tussen varianten en subvarianten
