Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
Article Number | GHR-02V-S |
Number Of Contacts | 2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-03V-S |
Number Of Contacts | 3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-04V-S |
Number Of Contacts | 4 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-05V-S |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-06V-S |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-07V-S |
Number Of Contacts | 7 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-08V-S |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-09V-S |
Number Of Contacts | 9 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-10V-S |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-11V-S |
Number Of Contacts | 11 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-12V-S |
Number Of Contacts | 12 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-13V-S |
Number Of Contacts | 13 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-14V-S |
Number Of Contacts | 14 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Article Number | GHR-15V-S |
Number Of Contacts | 15 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Remark | Secure locking device |
Eigenschappen verschillen tussen varianten en subvarianten

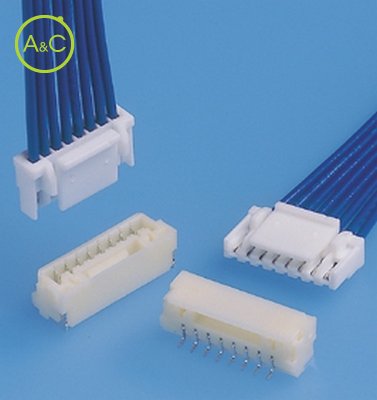

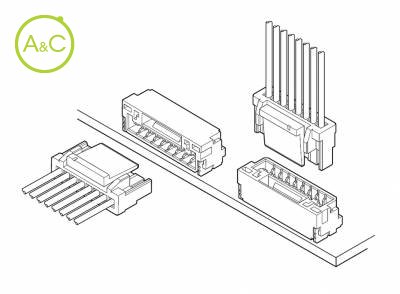

Developed for PDP, LCD or small electronics equipment. This low insertion type connector realizes easier mating operation. The basic concept of the contact part of this connector is equivalent to the performance proven SHL connector.
Secure locking structure
This innovative housing lock design achieves a locking device which is easy to handle as well as secure.
Contact lock structure
A contact lock provides a good 'click feeling' when mated, which prevents improper mating during assembly.
Prevent deformation of contacts
Fork-shaped header contacts are supported by grooves on the housing walls designed to prevent deformation of contacts.
Standards
UL Recognized E60389
RoHS Compliant
