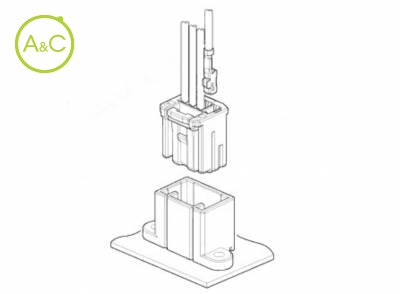

Female Connector Single Row for HCM Connector

HCM CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	HCMPB-03-K	HCMPB-03-S
Color	Black	White
Number Of Contacts	3	3
Upper Temperature	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V	14 V

Article Number	HCMPB-04-H	HCMPB-04-K	HCMPB-04-S
Color	Gray	Black	White
Number Of Contacts	4	4	4
Upper Temperature	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Automotive	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V	14 V	14 V

Article Number	HCMPB-05-K	HCMPB-05-S	HCMPB-A05-K	HCMPB-A05-S
Color	Black	White	Black	White
Number Of Contacts	5	5	5	5
Upper Temperature	+100 °C	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Automotive	Automotive	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V	14 V	14 V	14 V

Article Number	HCMPB-06-K	HCMPB-06-S	HCMPB-C06-K	HCMPB-C06-S
Color	Black	White	Black	White
Number Of Contacts	6	6	6	6
Upper Temperature	+100 °C	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Automotive	Automotive	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V	14 V	14 V	14 V

Article Number	HCMPB-12-K	HCMPB-A12-K
Color	Black	Black
Number Of Contacts	12	12
Upper Temperature	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)	2.54mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 C, DC (0.5mm2, Single Circuit) A	5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V	14 V

Eigenschappen verschillen tussen varianten en subvarianten

Developed to exceed and comply with USCAR (United States Council for Automotive Research) specifications. The HCM connector has now been added to JST's general automotive connector range. Designed with automotive safety requirements in mind, this 2.54mm pitch wire-to-wire and wire-to-board connector system incorporates a secondary lock feature that not only ensures correct connector assembly, but also facilitates connector strength and durability. In general, this connector has been developed to be very small and universal and is more than suitable for automotive applications such as; Display, ECU, Relay and other small electrical units. Low profile, miniaturization in the direction of mating Using the short length female terminal, low profile in the direction of mating is realized. Variations We have an abundant variation of PC board lock mechanism, lock type, wire-to-wire type and so on, according to your needs. Reliability and achievement Ensuring the reliabilities of an indispensable characteristic and mechanism etc, to the connector for automobile, this product has several adoption results proven in automotive electrical equipment miniaturized rapidly. Standard USCAR RoHS Compliant
