Female Connector for HIT Connector

HIT CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Color

Black
Brown
Gray
Light Blue
Light Green
Pink
White

Article Number	HITPB-25-D-K
Number Of Contacts	25
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	HITPB-25-E-N
Number Of Contacts	25
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	HITPB-28-G-H
Number Of Contacts	28
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	HITPB-25-C-LE
Number Of Contacts	25
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	HITPB-27-A-LM
Number Of Contacts	27
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	HITPB-25-F-PK
Number Of Contacts	25
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	HITPB-25-B-S
Number Of Contacts	25
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Eigenschappen verschillen tussen varianten en subvarianten

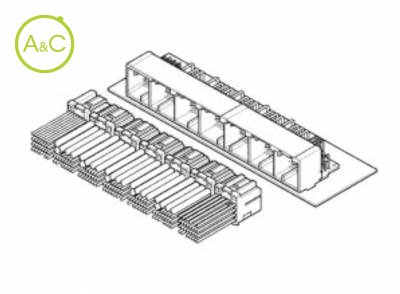

The HIT connector is multi-circuit and miniaturized for ECU for the automobile. Female connector is divided into seven housings, and considers the ergonomics and workability. Multi-circuit structure, Miniaturized Current products available are up to 180-circuit. Although this connector is multi-circuit, it was miniaturized by narrow pitch. The insertion force in the mating operation of one time is decreased by block diversion structure. Reliability It conforms to the automotive performance evaluation standard. Diversity It is hybrid structures of using 0.64mm(.025") and 2.8mm(.110") terminals. Large current circuit is also available. RoHS Compliant
