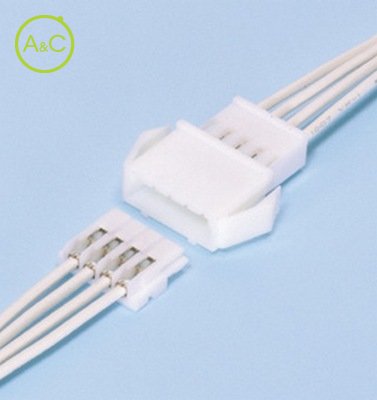

Receptacle Housing

HM CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	HRP-02-S
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 3 A
Rated Voltage (ac/dc)	250 V

Article Number	HRP-03-S
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 3 A
Rated Voltage (ac/dc)	250 V

Article Number	HRP-04-S
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 3 A
Rated Voltage (ac/dc)	250 V

Article Number	HRP-08-S
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 3 A
Rated Voltage (ac/dc)	250 V

Article Number	HRP-12-S
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 3 A
Rated Voltage (ac/dc)	250 V

Eigenschappen verschillen tussen varianten en subvarianten

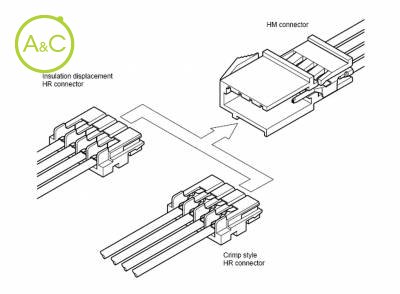

Matable with HR receptacles. Both crimp style and insulation displacement receptacles can be used Both crimp style and insulation displacement HR connector receptacles can be accommodated by the HM connector. Housing-to-terminal locks Spring action housing-to-terminal locks are an inherent part of the housing, and assure smooth contact insertion and firm contact retention yet with low insertion force. Mountable on a variety of panels Due to our unique panel installation locking mechanisms, the housing can be easily installed on panels of various thicknesses without using tools. Highly reliable housing construction Since all of the contacts are individually and totally surrounded by housing walls, the contacts are protected from deformation from outside sources of stress or from mismating. The polarized housing shape prevents reverse connection. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
