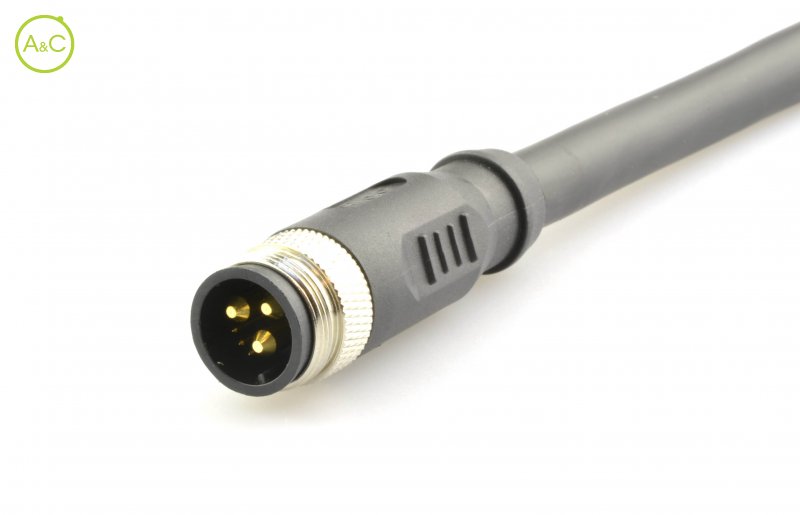

Connectoren
Terug naar productoverzicht
Number Of Poles
- 10 (3+7)
Article Number | L1019DG P 00 BX 1000 |
Color | Black |

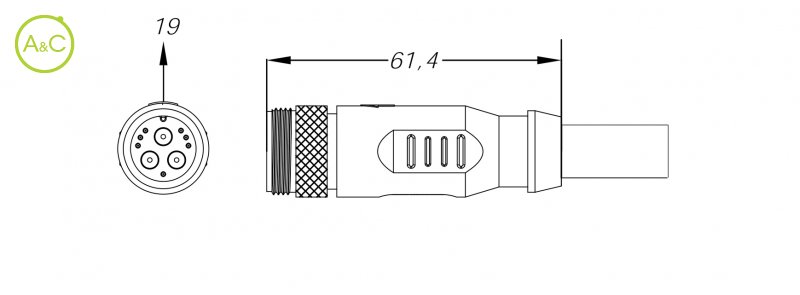

Connector Diameter | 19 mm |
Wire Section | 3 x 5,3 + 7 x 0,14 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Copper alloy |
Cable Diameter | 11 mm |
Insulation Wire | FEP |
Remark | *Rated current: 45A / 2A, 2 power pin loaded 40A / 2A, 3 power pin loaded Other cable length/type on request |
Rated Current | *45 / 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold plated |
Fitting Length | 114 mm |
Material Jacket | PVC |
Eigenschappen verschillen tussen varianten en subvarianten
