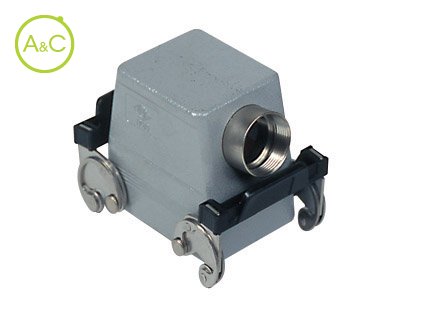

Hoods with 2 levers, high construction

Side entry
Aluminium, Metric entry

MAO 50 X25

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Entry

1xM25
1xM32

Article Number	MAO 50 X25*
Protection Degree	IP66
Material Housing	Aluminium
Height	75 mm
Remark	May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	71 mm

Article Number	MAO 50 X32*
Protection Degree	IP66
Material Housing	Aluminium
Height	75 mm
Remark	May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	71 mm

Eigenschappen verschillen tussen varianten en subvarianten

Accessoires

Covers with 4 pegs

Covers with 4 pegs
